Flexible Heaters for Commercial and Military UAVs in Cold Environments

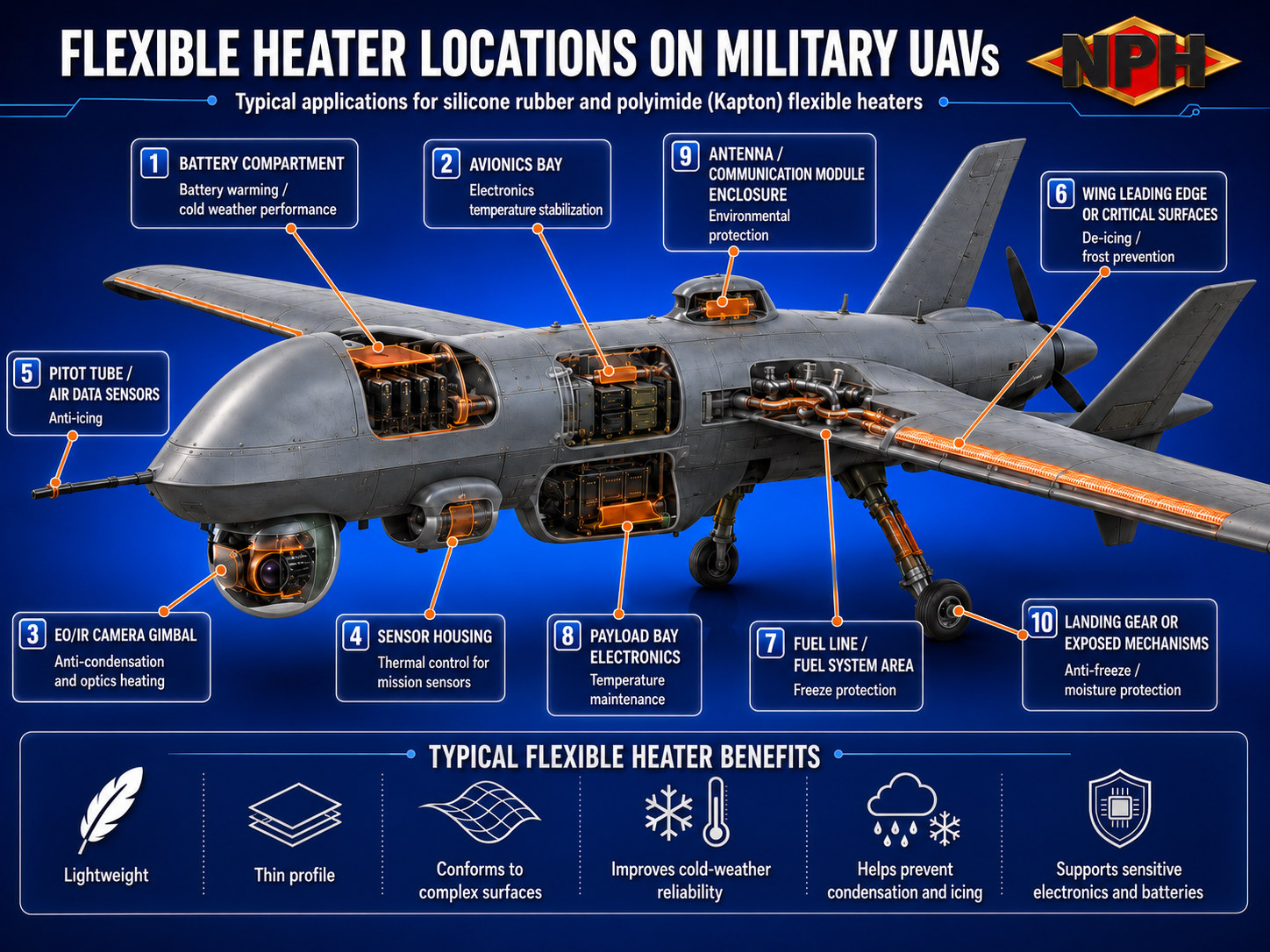

Flexible Heater Locations on Military UAVs-Drones

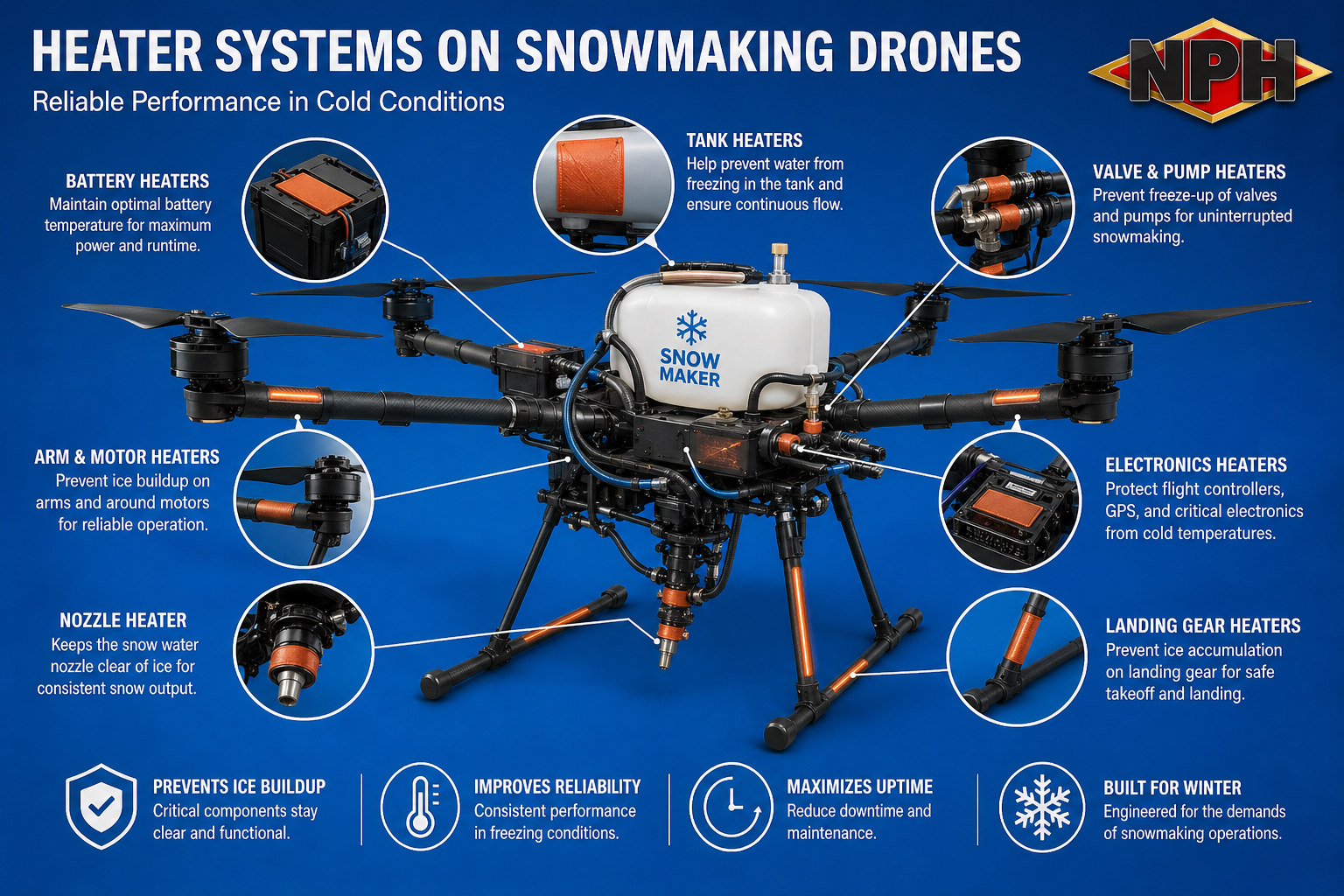

Flexible Heater Systems On Snow Making Drones
Custom Flexible Heaters for Commercial and Military UAVs
NPH custom flexible heaters provide lightweight, low-profile thermal management for commercial drones, military UAVs and unmanned aircraft systems operating in freezing, high-altitude and winter environments. Silicone rubber and Kapton® polyimide heaters conform closely to batteries, avionics, optical systems, sensors and curved housings, delivering targeted heat without the size and weight of conventional heating components.
Cold-Weather UAV Heater Applications
Flexible heater circuits can be engineered for lithium-ion and lithium-polymer battery warming, avionics, flight-control computers, communication modules, EO/IR cameras, surveillance lenses, optical windows, GPS equipment, antennas and payload electronics. Additional uses include condensation prevention inside enclosures, actuator and valve heating, ground-control equipment, charging stations and temperature-controlled transport cases.
Industries Served
Applications include defence and military systems, border surveillance, public safety, search and rescue, mapping and surveying, agriculture, infrastructure inspection, energy, telecommunications, Arctic research and commercial delivery platforms.
Benefits of Flexible Drone Heaters
NPH flexible heaters offer uniform surface heating, rapid thermal response and precise watt-density distribution. Their thin, lightweight construction supports compact UAV designs while helping stabilize battery temperature, protect sensitive electronics and reduce condensation-related problems.
Custom options include etched-foil or wire-wound circuits, pressure-sensitive adhesive, thermal insulation, custom shapes, holes and cut-outs, low-voltage operation and integrated thermocouples, RTDs, thermistors, thermostats or thermal fuses. Designs can be produced for prototypes, replacement components and OEM production programs.
Frequently Asked Questions
How do flexible heaters help drones operate in cold weather?
How do flexible heaters help drones operate in cold weather?
Cold temperatures slow the chemical reactions inside lithium-polymer batteries, reducing available power and potentially shortening flight time. A controlled battery heater can help maintain the battery within the aircraft manufacturer’s approved operating range. Review this cold-weather drone battery guidance when developing winter operating procedures.
Which heater is better for UAVs: Kapton or silicone rubber?
Kapton polyimide flexible heaters are exceptionally thin and suitable for compact electronics, sensors and precision heat patterns. Silicone rubber flexible heaters provide excellent flexibility, mechanical durability and environmental resistance for batteries, housings and outdoor assemblies.
Do military UAV heaters require MIL-SPEC qualification?
Requirements depend on the procurement contract, platform specification and mission environment. Military programs may require tailored low-temperature testing under the official MIL-STD-810 document, but the standard does not impose one universal specification for every component. Required methods, temperatures and documentation should be confirmed before design approval.
Can UAV heaters include temperature sensors and controls?
Yes. Flexible heaters can incorporate thermocouples, RTDs, thermistors, thermostats and thermal fuses for closed-loop control and over-temperature protection. Submit the temperature range, voltage, wattage, dimensions and environmental requirements through the NPH flexible-heater RFQ.
