 Kapton (Polyimide) Heater Circuits
Kapton (Polyimide) Film Heaters & Custom Kapton Heater Circuits For-3D Printers, Electronic Components, ATM's & Printers

What is Kapton™ (Polyimide) Film? Guide.
Kapton Film has been around since the late 1960's. Besides its great abrasion resistant properties polyimide film is an organic polymer that is suitable for extreme/harsh temperature environments. Typically from -319°F to +392°F (-195°C to +200°C). Polyimide film also has very high dielectric strength capabilities along with low outgassing properties making it suitable in vacuum environments. Along with the above, its flexibility, thin profile, low mass and precision/even heat distribution make it an excellent choice for etched foil kapton heater circuits.

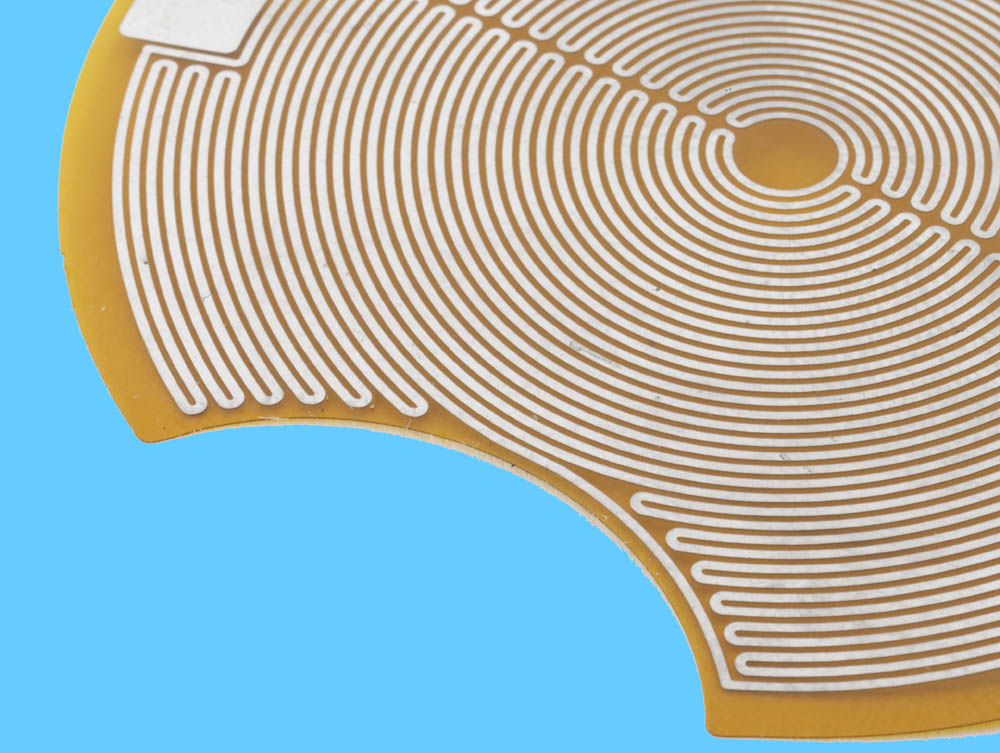

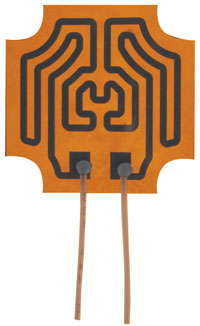

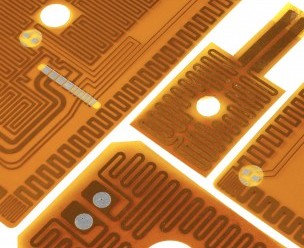

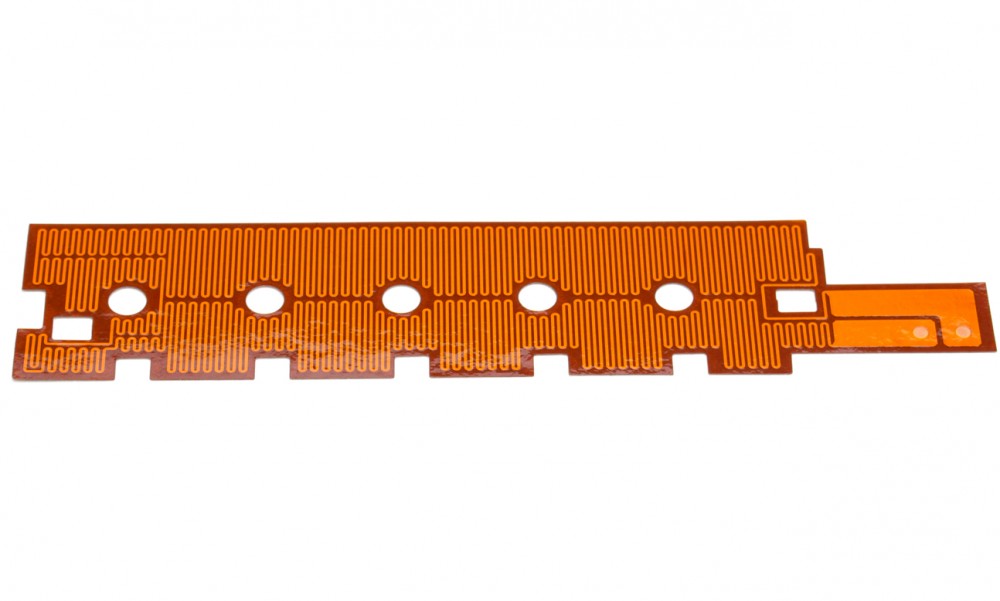

Etched Foil Kapton Film Heater              Polyimide Thermal Circuit             Kapton Heater with Holes & Cutouts
     Custom Etched Foil Kapton Heaters                   Kapton Polyimide Heaters                   Kapton Heater Circuits with Holes

Review, Product Description and Benefits of Bespoke Kapton (Polyimide) Film Heaters:
Kapton polyimide heater circuits are custom manufactured using etched foil track technology. With etched foil kapton (polyimide) heaters, chemically etched resistive foils are used. The advanced computer designed etched foil circuit pattern is then laminated or bonded between two sheets of polyimide insulating film.

Benefits of custom/bespoke kapton (polyimide) etched foil film heaters are as follows:

        The transparent polyimide film allows easy visual inspection of the internal etched foil track or circuit

        Polyimide film is known for superior tensile strength and resistance

        Kapton (Polyimide) Heaters are resistant to radiation and fungus and hence can be used in commercial and
           industrial applications

        Kapton polyimide films ultra thin structure, light weight and small thermal mass transfers heat quickly
           and evenly. It further allows installation in environments where space and weight contraints must be met

        Custom (bespoke) kapton polyimide heaters allow for higher power densities from 1W/sq. in to as high as 50W/sq. in.

        Due to polyimide films excellent physical and electrical properties a thermal stability can be achieved
           over wide temperature ranges

        Kapton heater circuits use advanced circuit imaging and printing combined with chemical
           etching of the foil track which allows engineers and designers the flexibility to distribute
           wattage, allow for precise heat distribution and create multiple heat patterns within
           a single heater.

        Kapton heaters conform to almost any shape and are formable, flexible/bendable and bondable
           to metalwork

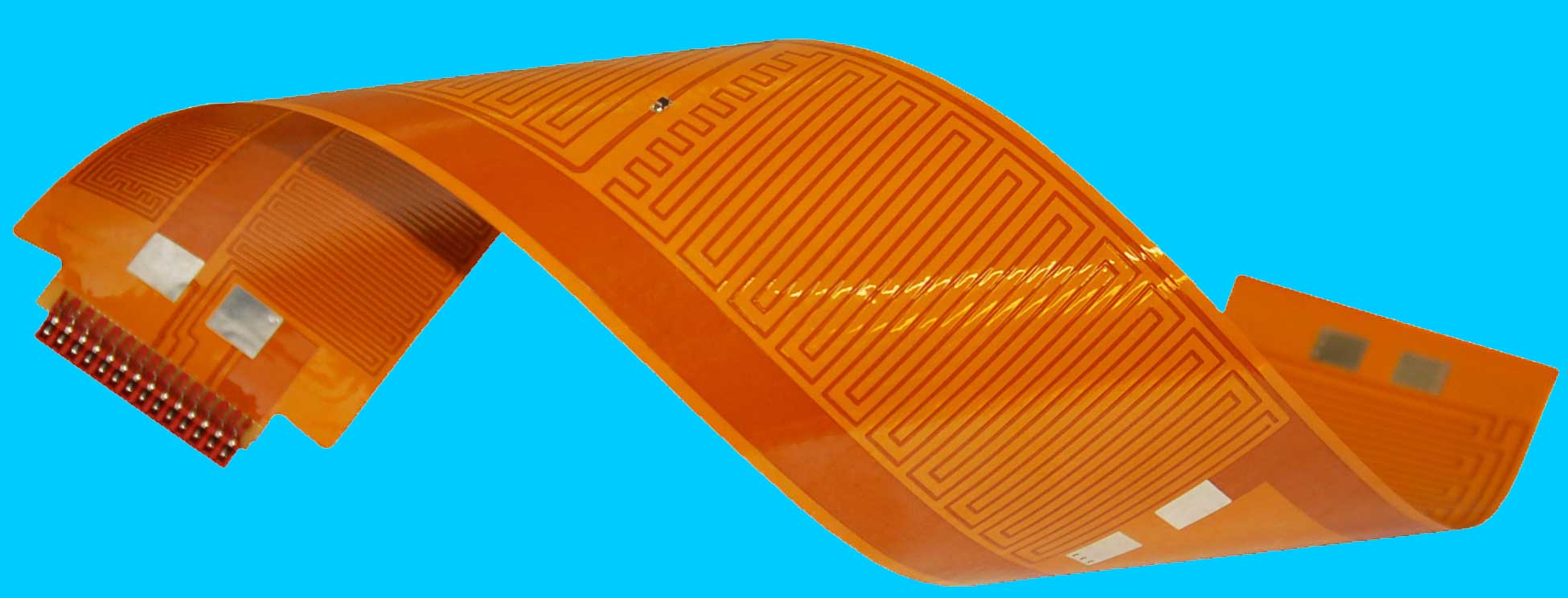

Curled Kapton Polyimide Film Heater/Thermal Circuit

All custom (bespoke) kapton (polyimide) film heaters are built to order, but rush delivery is available. In most cases, NPH can deliver custom kapton (polyimide) heater circuits within 72-96 hours. All NPH flexible heaters are available with custom design modification. Custom designs are welcome. Please contact us with your requirements.

Kapton Film Circuits-Specifications, Manuals, Technical Letters & Tips:

 Flanged Immersion Heaters Specifications Kapton Polyimide Flexible Heaters Brochure
 How to Extend the Life of Your Immersion Heater-2 FAQ's-Kapton Polyimide and Silicone Heaters-Brochure.pdf

 Applications Guide: Kapton Polyimide Film Heaters & Custom Thermal Circuits

Due to the above material properties and benefits, custom/bespoke kapton (polyimide) film heaters have a vast number of applications. It is this combination of useful properties at temperature extremes that makes Kapton® a unique industrial material. Listed below are just a few of the applications where kapton heater circuits are used.
  • Medical applications, typically requiring clean and sterile environments - Medical Imaging, Medical Diagnostic Instruments  and Analyzers, MRI Equipment
  • All types of heating applications for electronic components - LCD displays, photocopiers and photographic equipment,  ATM's, computer equipment, 3D printers
  • Evironmental control and maintenance of electronics - in telecommunications equipment (such as antenas, microvave repeaters and back-up battery systems), electrical panels and enclosures
  • Heating of Aerospace/Defence Instrumentation where low outgassing properties are required - Aviation instrumentation and personal comfort heating, Satellites, Spacecraft, Satellite Dish
  • Industrial Applications such as heating of Electronic Enclosures, Heaters for motors, cold storage equipment, freeze protection
  • Transportation - kapton heaters for Over the Road Truck and Railcar Freeze Protection, Battery and Oil Heating, Auto and Motorcycles
  • Applications in the Energy Industry - Fuel Cells, Battery Systems, Power Meters, Transmission Switches
  • Printing Equipment Industry, Optical and Photograghic equipment, cameras
The uses for kapton polyimide film heaters are infinite as they can suit any application requiring surface heating up to 200°C. Their suitability for arduous conditions has been proven in applications from polar expedition to space exploration. We are the final frontier in polyimide film heaters!

TEMPERATURE CONTROL FOR KAPTON (POLYIMIDE) FLEXIBLE HEATERS:

NPH kapton polyimde heaters can be supplied with factory fitted sensors and switches to suit all types of instrumentation. Available from stock are PT100's, J, K and T type thermocouples, bi-metal thermostats and thermal fuses. We also fit customer specified thermistors and other resistance temperature devices as well as extruded pockets for customers to fit their own sensors. Separate mechanical or digital thermostats can be supplied for process control.
