Over-The-Side Immersion Heaters Review & Construction Guide:

 Over The Side Immersion Heaters-Incoloy, Copper & Stainless Steel SheathIndustrial Tank/Vessel Immersion Heaters - Over-The-Side-Heaters

Product Description & Review:

Over-the-side immersion heaters are designed for vessels where through the side immersion heaters cannot be conveniently installed. Over-the-side heaters are installed through the top of the vessel with the heated portion of the unit along the side or at the bottom of the tank. Natural circulation of the fluid inside the vessel allows for even distribution. They take up little space, eliminate the need for tank penetrations, are easily removed for service, and provide ample working space inside the tank. Custom configured elements evenly distribute heat by direct contact in numerous applications, including acid and alkali solutions. Terminal houses or lead wires are provided for power connection.

These immersion heaters are available with heating elements made of copper, steel, stainless steel, cast iron, Incoloy, titanium, and PFA coated. A wide selection of kilowatt ratings, shapes and mounting methods are available to suit many different types of applications.

The large variation in heating element material and shapes of over-the-side immersion heaters offers a wide selection in the application of these units. Water, oils, solvent, plating baths, salts and acids are some of the many liquids and viscous materials commonly heated with immersion heaters. Over-the-side heaters types permit portability, easy removal for cleaning of tanks and heaters, and ample working area within the tank when installed.

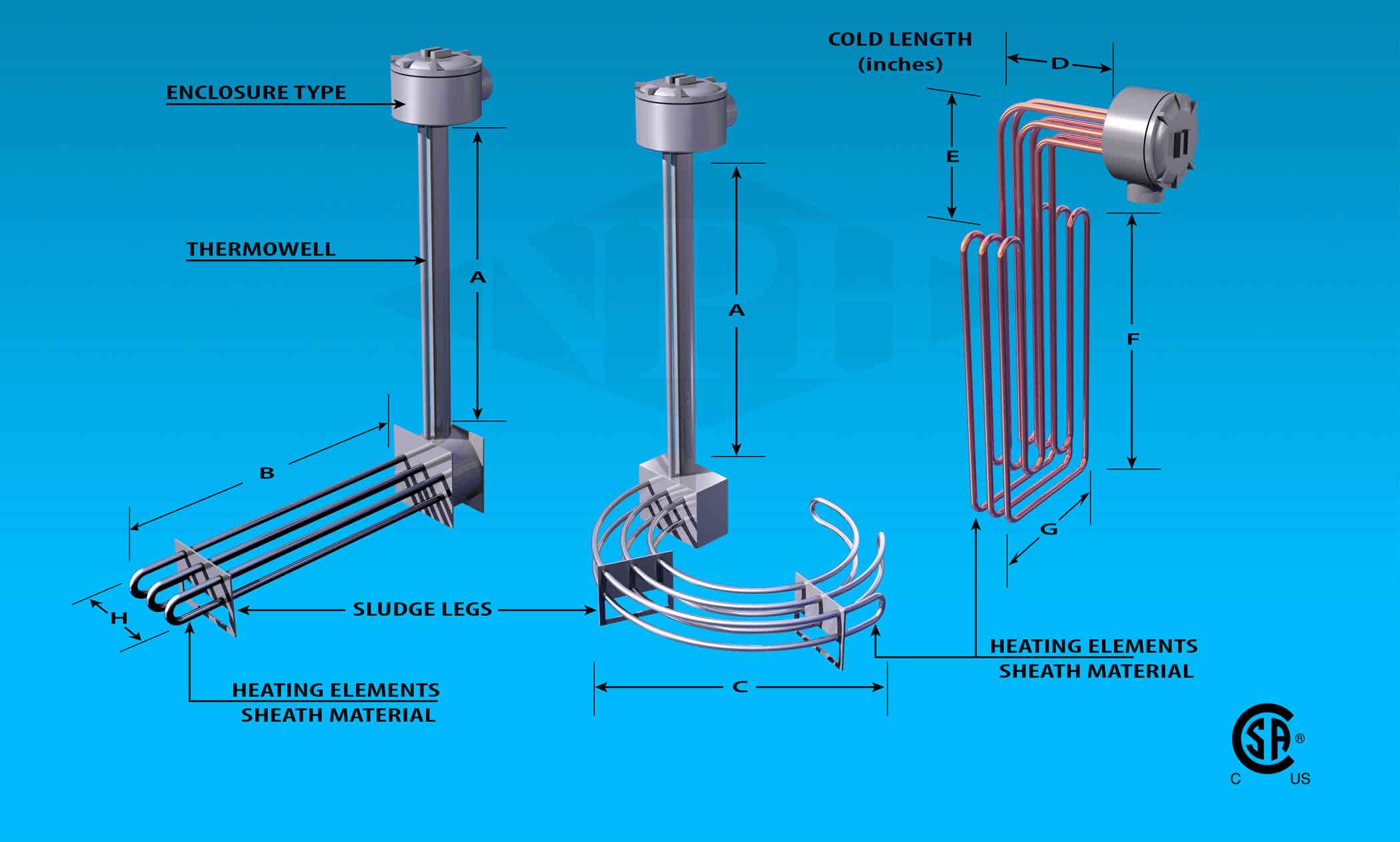

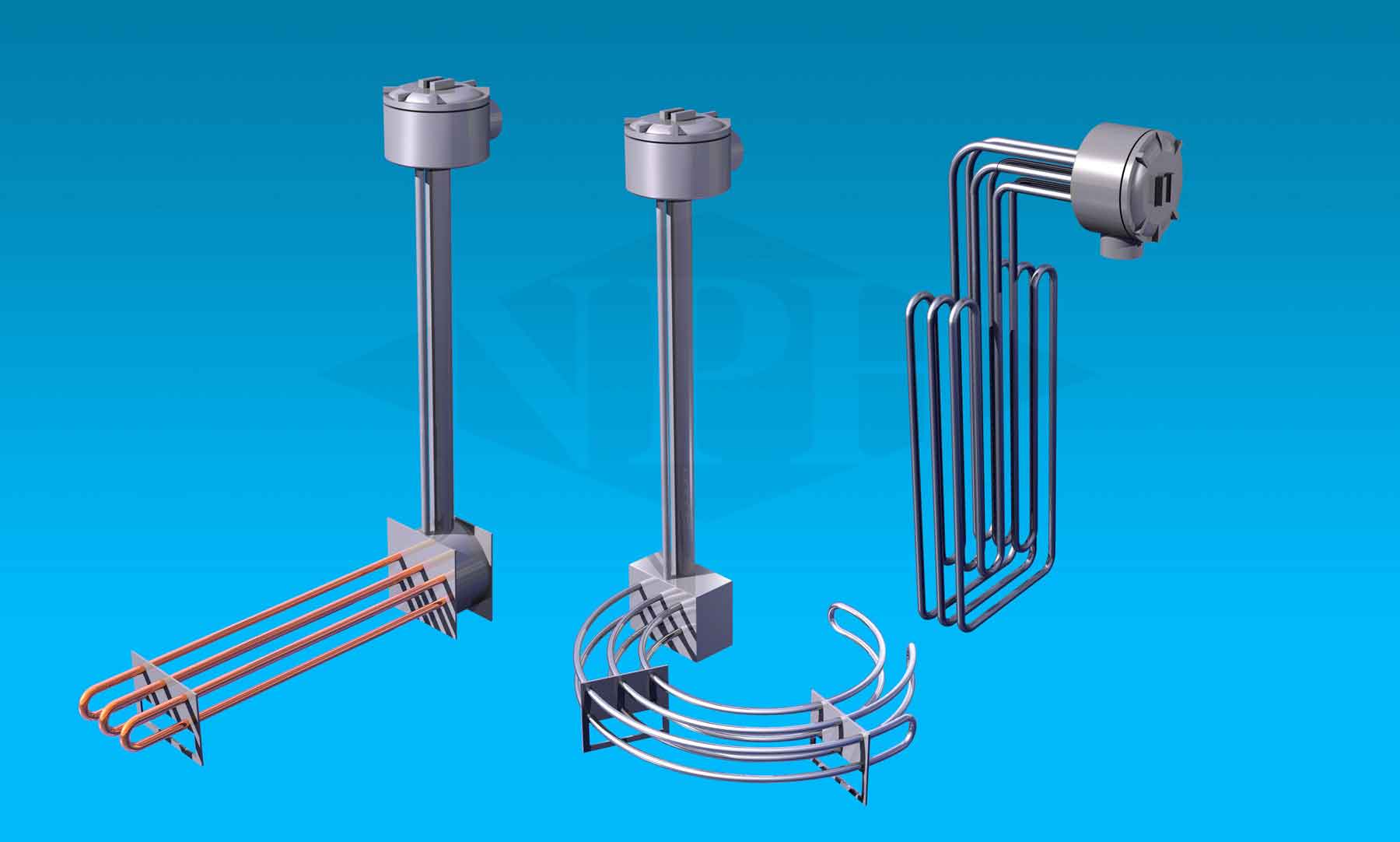

 Over-The-Side Immersion Heaters - Construction Components

Over The Side Heaters Construction Components-L Shaped and Round Element Design
 Over The Side Tubular Immersion Heaters

Over The Side Immersion Heaters: Specifications, Manuals,

Technical Letters & Tips:

 Flanged Immersion Heaters Specifications Over The Side Immersion-Heaters Specifications.pdf
 How to Extend the Life of Your Immersion Heater-2 Over the Side Immersion Heaters Wiring Diagrams.pdf

Applications Guide: Over The Side Immersion Heaters

  • Hot Water Storage Tanks
  • Plating Baths
  • Heating & Preheating All Grades of  Oil
  • Cleaning and Rinsing Tanks
  • Heat Transfer Systems
  • Sanitary
  • Corrosive Solutions
  • Freeze Protection of Fluids
  • Petro-Chemical
  • Mining Equipment
  • Environmental
  • Sewage Processing/Recycling/Water
  • Purification
  • Caustic Solutions

Standard Construction Features:

       Elements Materials Quartz, Teflon, Copper, Steel, 304/316 Stainless Steel, Incoloy, Titanium
       Number of Elements  1, 3, 6, 9
       Element Diameter 0.315" 0.430"
       Watt Density 6.5, 15, 23, 45 W/in2
       Optional Construction Styles - Over-The-Side Immersion Heaters

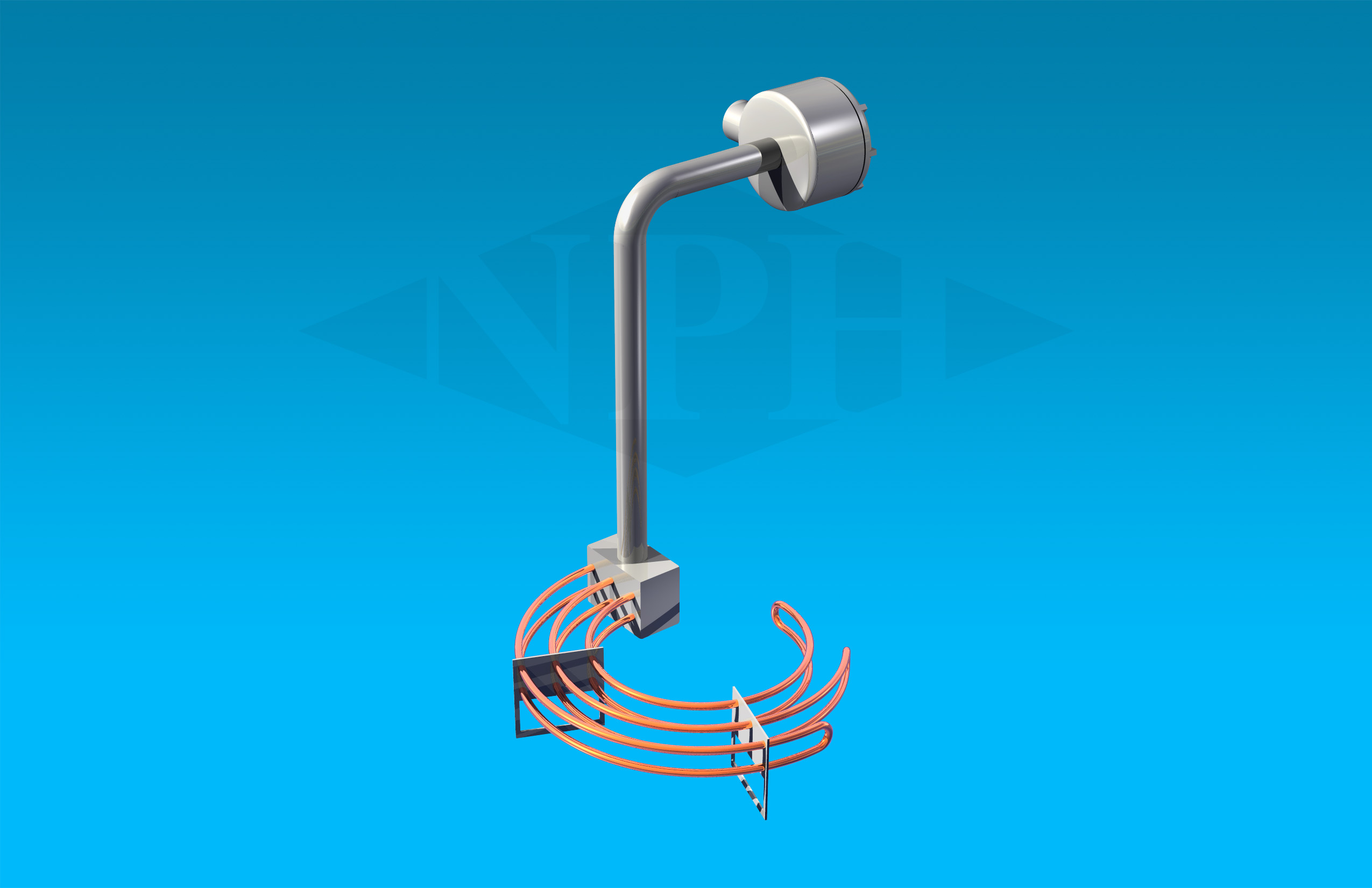

Optional Over-The Side Immersion Heaters Construction Styles:

Over The Side Heaters Review | Over The Side Heaters Construction Guide

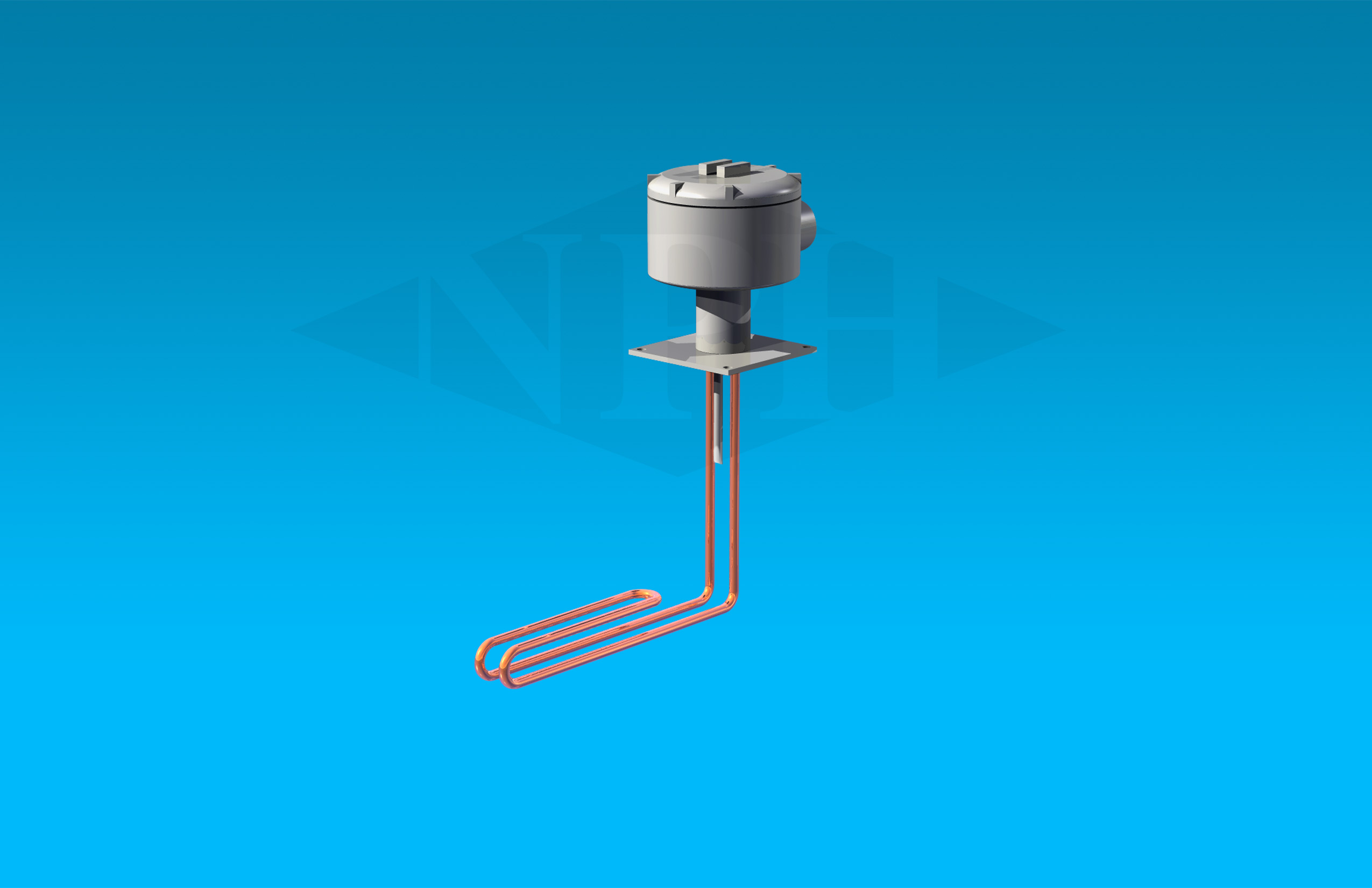

Single Element CB -Single Element Shallow Tank Design Thermostat & Mounting Flange

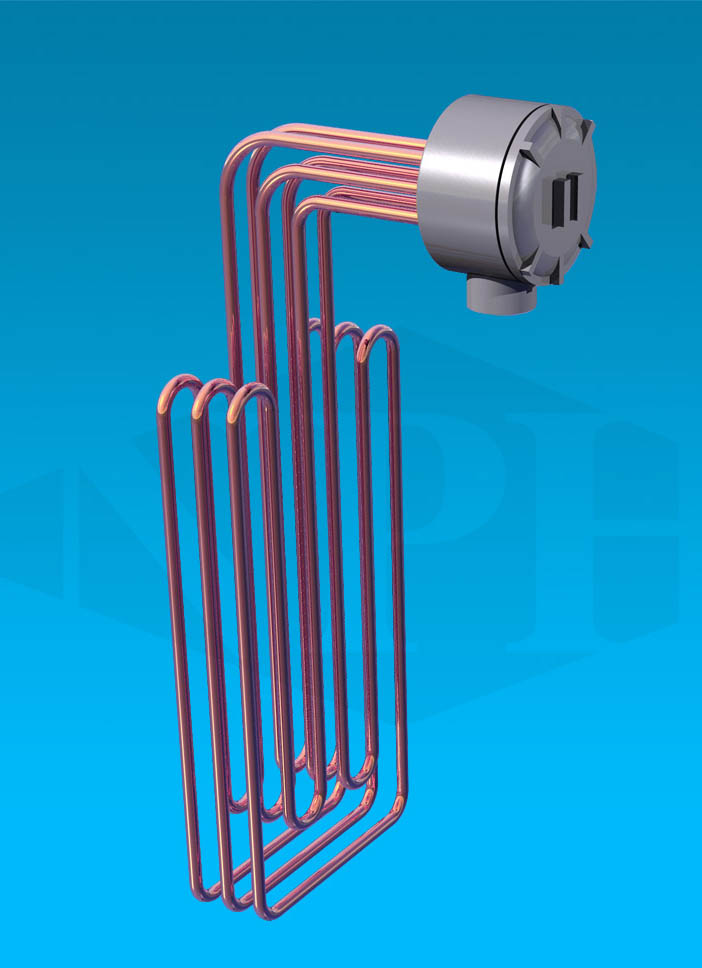

Hanger copper blue cropped -Hangs over the lip of tank 3 elements design

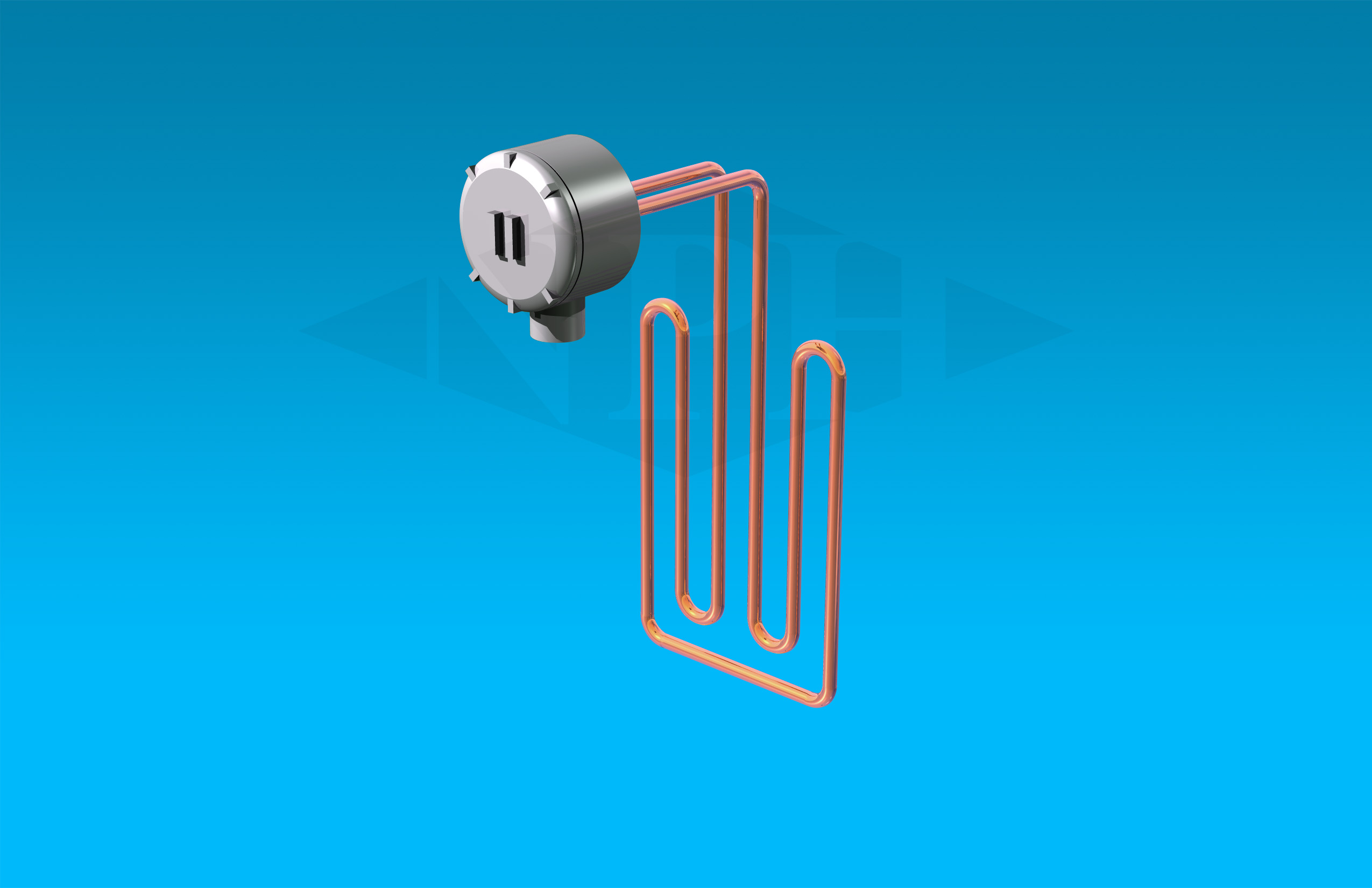

Hang over lip single CB

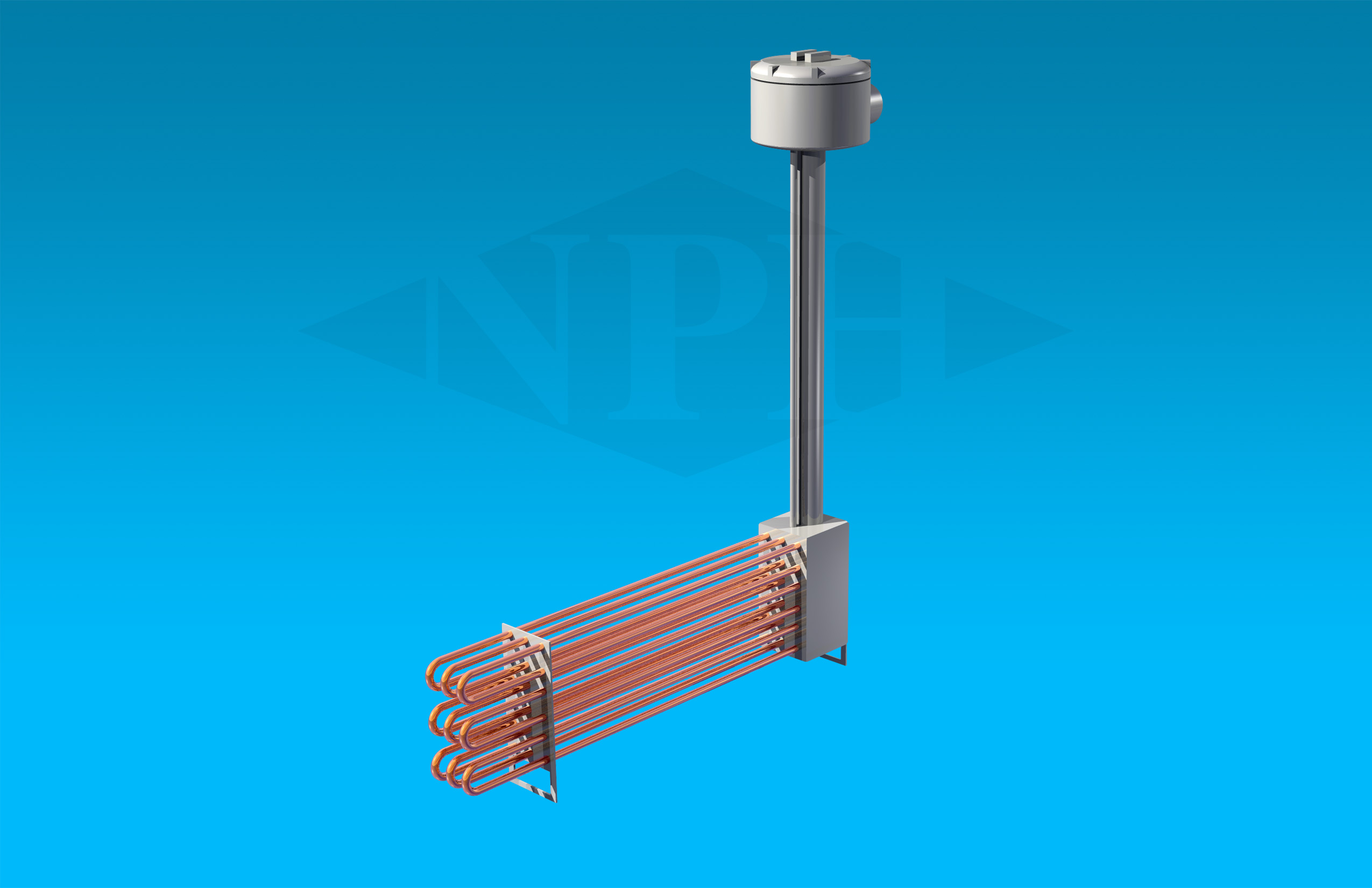

9 Circle Elements Stacked CB -9 Element Design Stacked Thermostat for process control Sludge legs

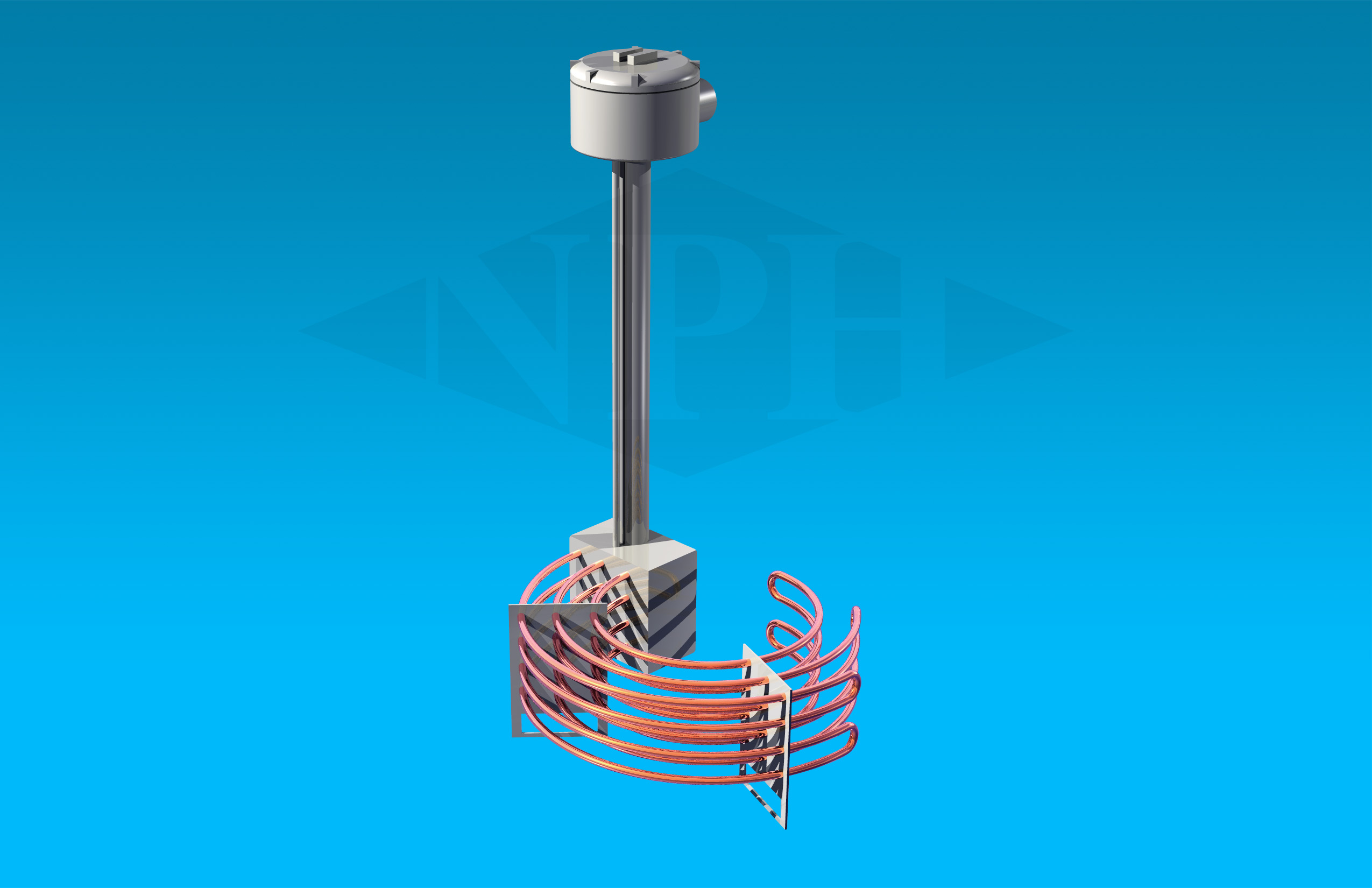

6 Circle Element CB -6 Element Design stacked Thermostat for process control Sludge legs

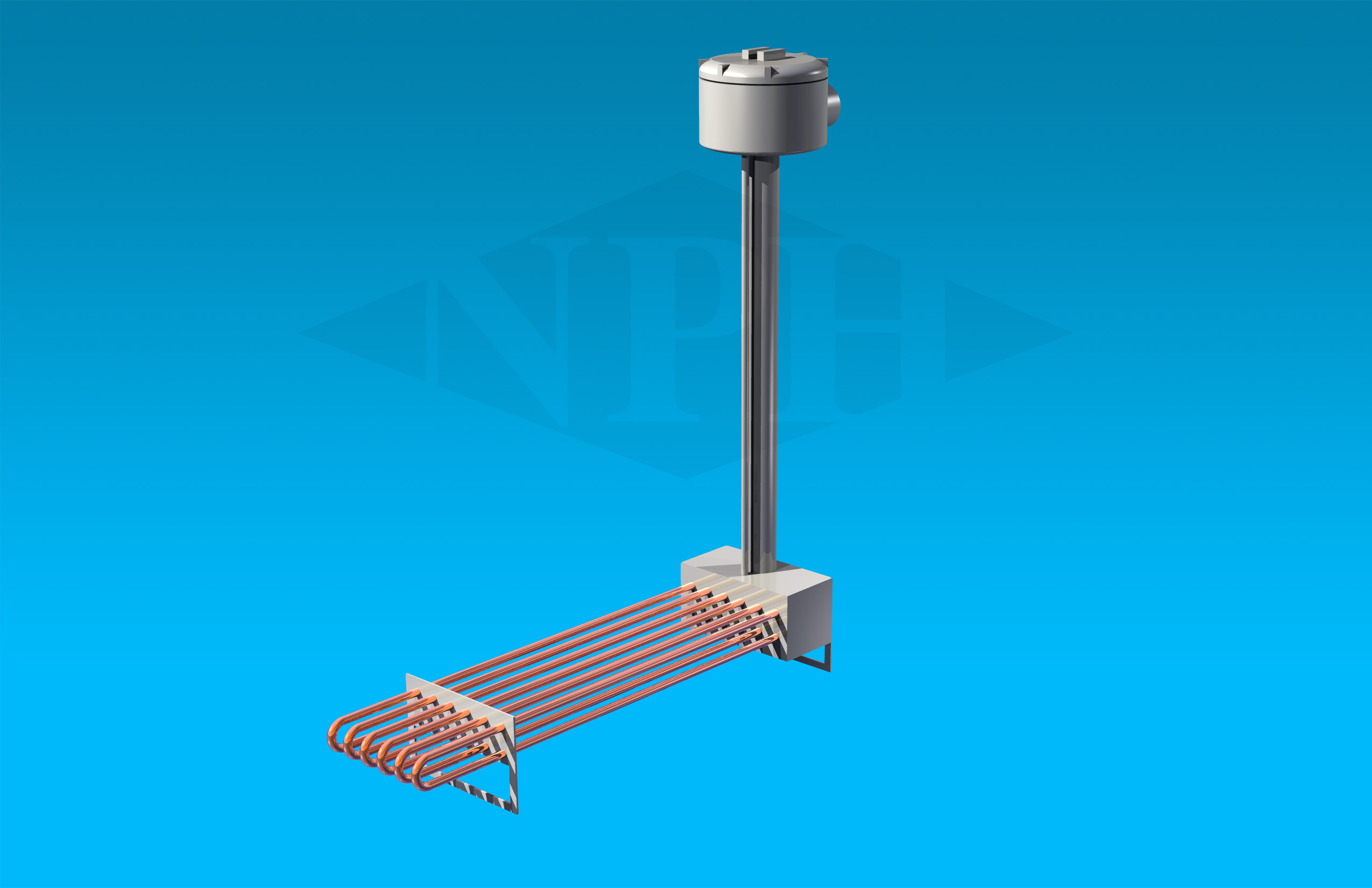

6 Element Horizontal CB

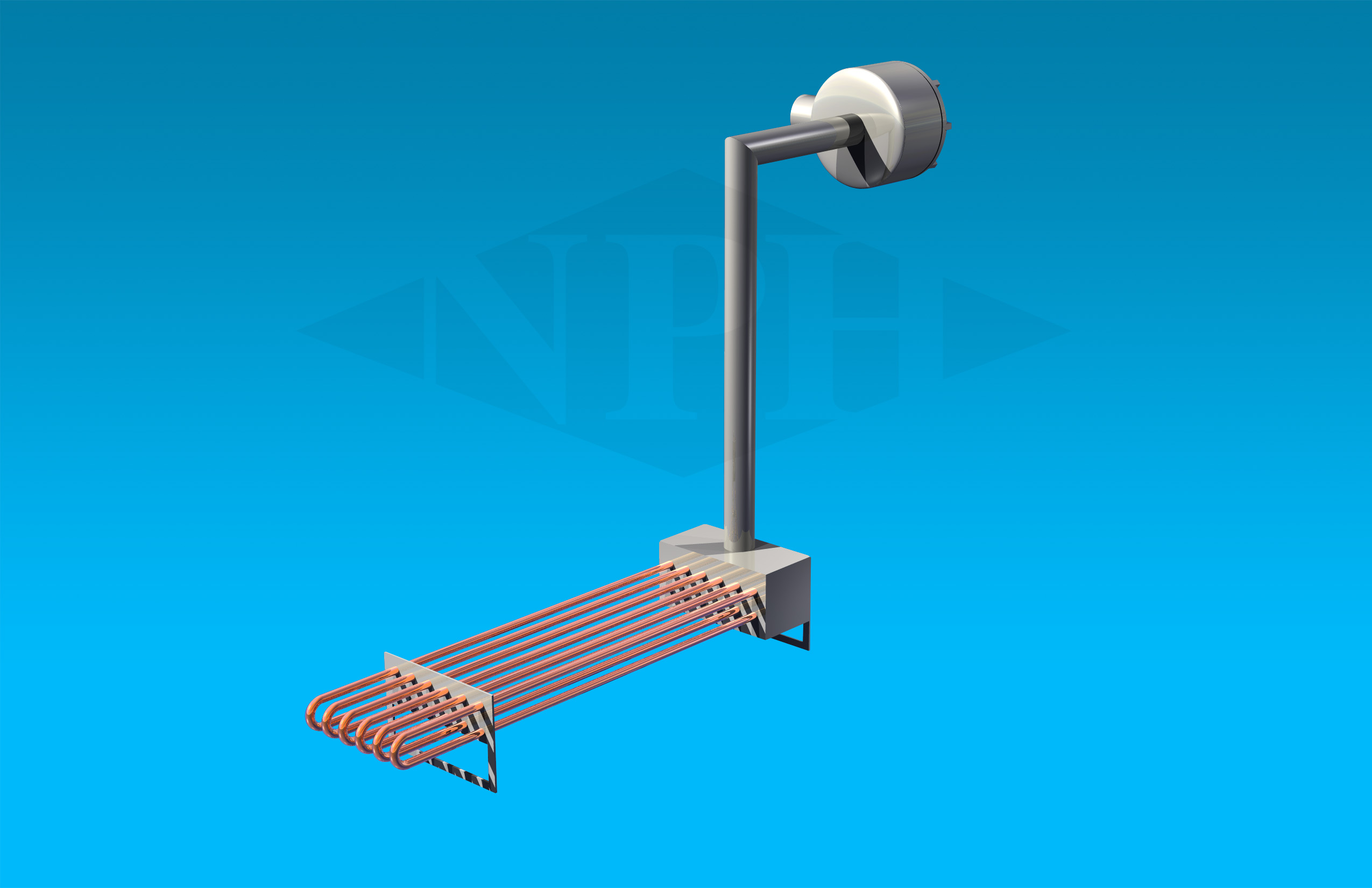

6 Element Gooseneck CB

Single Element Shallow -Tank Design


High Conductivity Elements -

Filled with highest purity blends of magnesium oxide refractory (MgO) compacted to rock hard density to insure maximum thermal conductivity and maximum electrical resistance, and assure long element life.

Heavy Coil Construction - Watt density on the heating coil is designed for low watt density operation by increasing the coil diameter and length to give maximum coil surface area and limit coil surface temperature, providing longer coil life.

Common Industrial Heater Terminal Enclosure -Types:

 Safe operation of heaters equipped with these enclosures depends on employment of electrical wiring meeting National Electric Code and limiting maximum operating temperatures (including temperatures on outside of vessel, piping, flanges, screw-plugs, enclosures and other heat conducting parts) as dictated by flammable liquids, vapors, or gases present. Approved pressure and/or temperature limiting controls must be used to assure safe operation in the event of system malfunction.

Common Nema Enclosure Types See Link Below:

http://www.nphheaters.com/quote/industrial_process_heaters/technical_resource.htm#nema_enclosure

Terminal Enclosure Types - General purpose, sheet metal, (NEMA-1) painted with enamel. Moisture Resistant-Nema 4, Nema 4X, Explosion Proof Nema 7.

Grounding Connector Standard - A solid terminal connector is standard on all NPH immersion heaters insuring positive ground and personal safety.

Special Features Available:

Kilowatt Ratings As required by user
Elements Materials  - 316, 321, 347 stainless steel, Incoloy, Steel, Inconel. Other materials available, please contact NPH

National Plastic Heater Corrosion Policy:

NPH cannot warrant any electric immersion heater against failure by sheath corrosion if such failure is the result of operating conditions beyond the control of the heater manufacturer. It is the responsibility of the purchaser to make the ultimate choice of sheath material based on his knowledge of chemical composition of corrosive solution, character of materials entering the solution, and controls which he maintains on the process. * Not intended for use in hazardous locations.

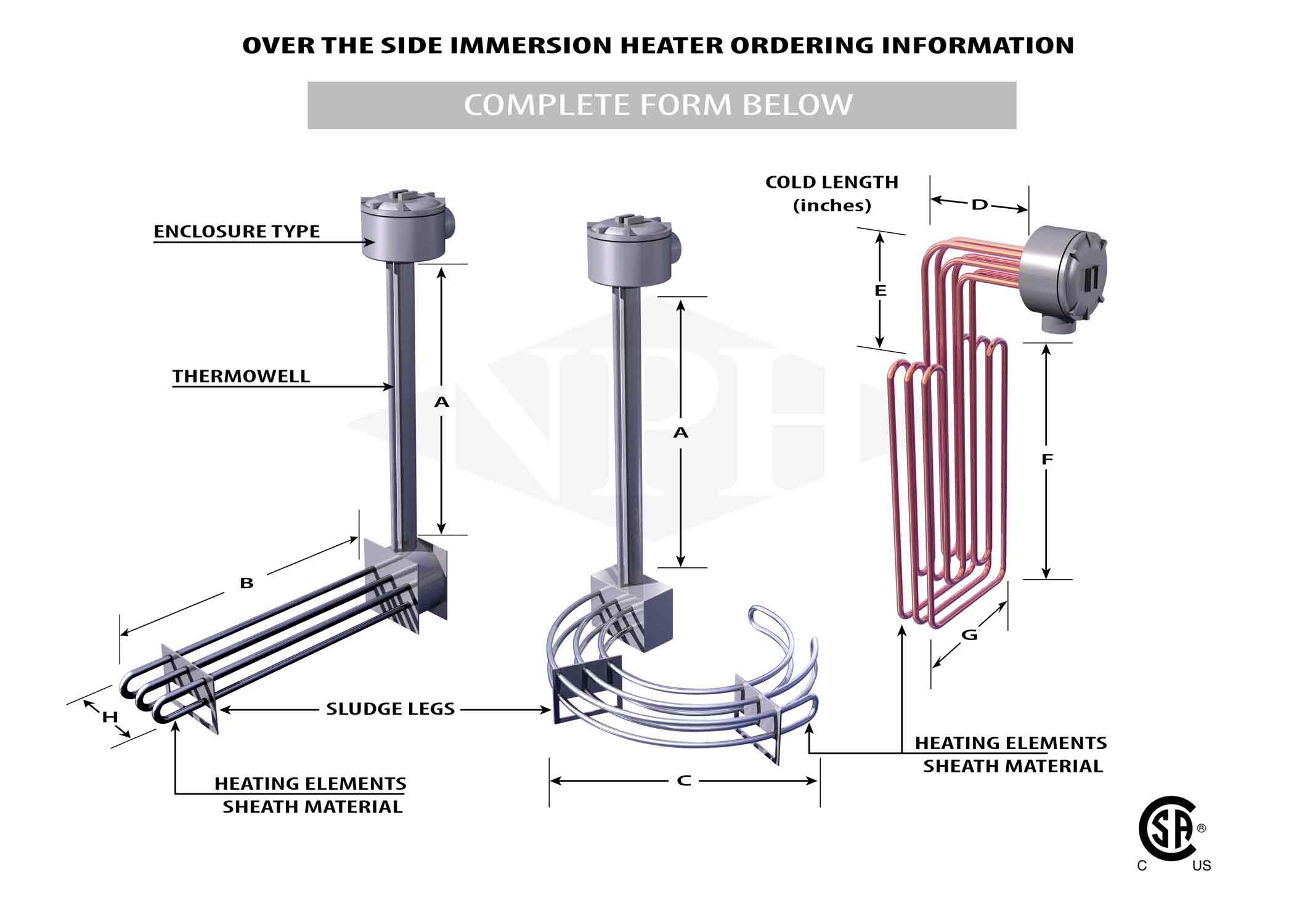

 Review: Over The Side Immersion Heaters Order Form
