Multi Zone Cartridge Heaters, Maxi Zone High Temperature Cartridge Insertion Heaters for the Plastics, Tool & Die, Platen, Food Service and Packaging Industries

Zoned/Multizone/Multicell & Distributed Wattage Cartridge Heaters, Platen Cartridge Heaters, Electric Heated Platens, Gundrilled Platens

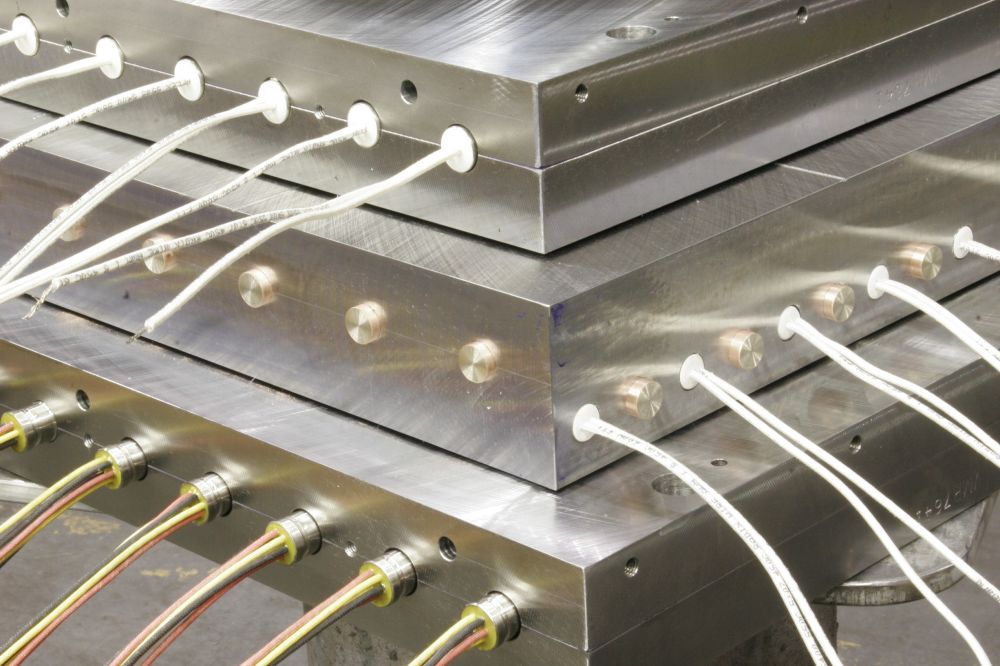

Multi Zone/Distributed Wattage Cartridhe Heaters with Platens

Custom Multizone and Distributed Wattage Cartridge Heaters (Platen Heaters) - Zoned Versus Distributed Wattage - Definition and Application:
In many industrial process heating applications we are often asked, what is the difference between "distributed wattage" and "zoned/multizoned" (multicell) cartridge heaters? These custom construction techniques are often applied to various heater types that transfer their heat via conduction. Some examples are cartridge insertion heaters, ceramic and mica band heaters as well as mica strip heaters. Usually most heaters that use a wound coil can use these construction methods to control watt density. Let's discuss some definitions before beginning.

Definitions for the Construction of Zoned/ Multizoned and Distributed Wattage Cartridge Heaters:

Coil: A resistance wire usually Nickel/Chromium (often referred to as Nichrome) that is wound around a round mandrel or ceramic core to hold the shape. When a coil is wound, it is usually done in a uniform manner.

Close Wound: If all the turns of a wound coil touch, this is called a close wound coil.

Open Coil: If the close wound coil is taken and stretched, it becomes an open wound coil.  Coils can also be initially wound as open coils if there is spacing between each turn of the coil.

Pitch: The distance from turn to turn of an open coil.

Watt Density: The wattage produced by a heater divided by the surface area of the heater. Common units of measure are W/in² and W/cm².

What Makes Distributed Wattage Cartridge Heaters:
Distributed wattage is when a coil winding's pitch is not consistent throughout its entire length. Some parts of the winding are more tightly packed or wound with turns than other sections, to allow the heat profile to be more concentrated in some areas of the heater than another. The non-uniform pitched coil will have sections of closely wound coils and sections of loosely wound coils. These methods of non-uniform stretching or non-uniform winding of the coil pitch allow the heater manufacturer to increase or decrease the watt density of the heater in certain sections.  Because the coil winding in some of the sections will be closer together than other sections, the watt density will be greater in those sections.  These higher watt density heater sections will be hotter than the other sections.  Certain sections of the heater can be now be made to run hotter than other sections.  Only one set of power leads is used in this configuration, as the entire heater turns on as one unit.

Application of Distributed Wattage Cartridge/Insertion Heaters:
A distributed wattage heater allows the end user to have higher heat where needed. This method of distributing heat is especially beneficial if only a small section of the heater is providing the majority of the heating or in applications where heat is needed over a long length and there tends to be a greater temperature loss (heat loss) or drop-off near the heater ends. Distributed wattage heaters are often used in platens and sealing bar applications where heat loss compensation near the ends of the heater is critical.


Distributed Wattage/Zoned/Multizone/Multicell Cartridge Heaters For Platens and Other Industrial Applications

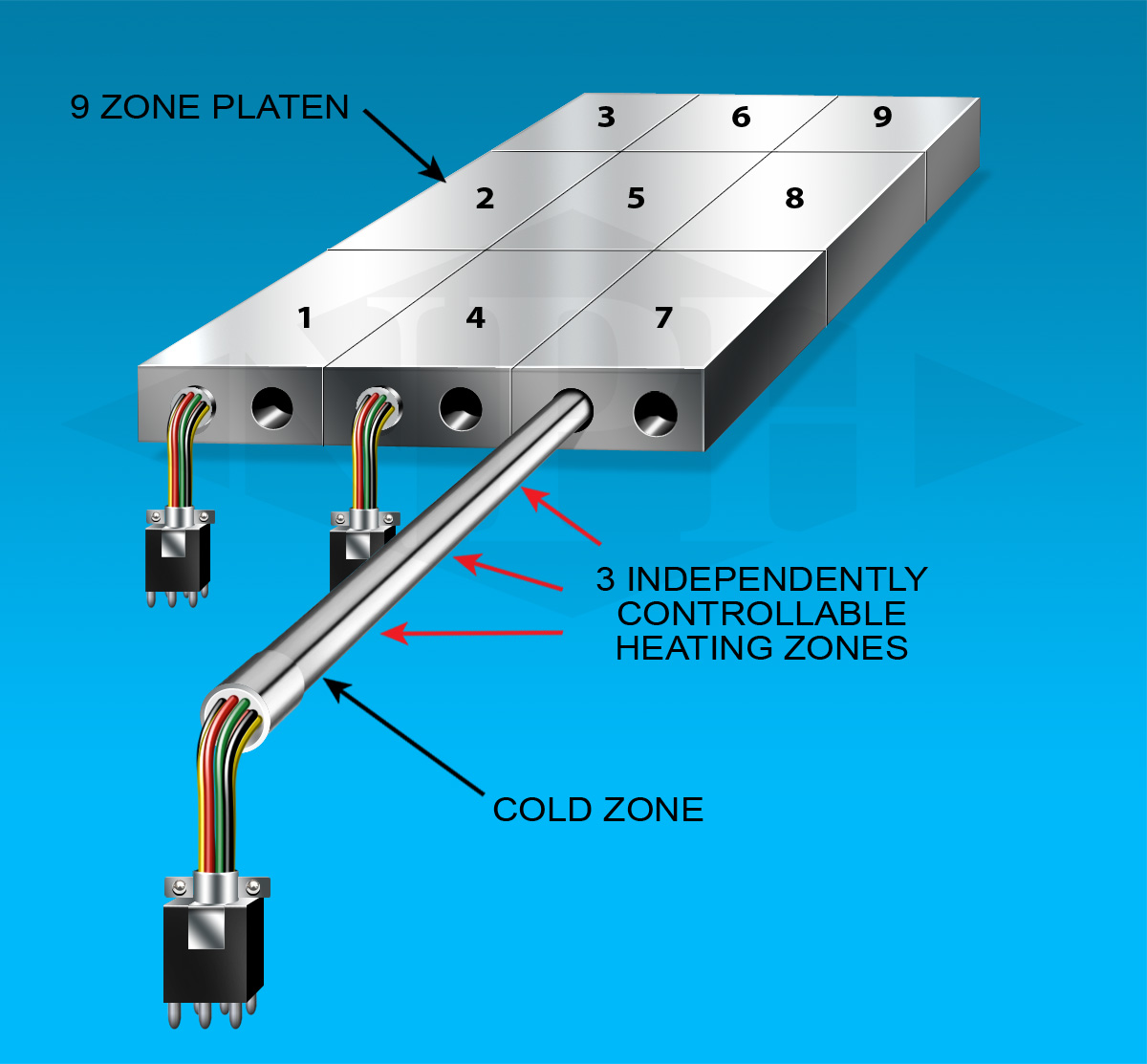

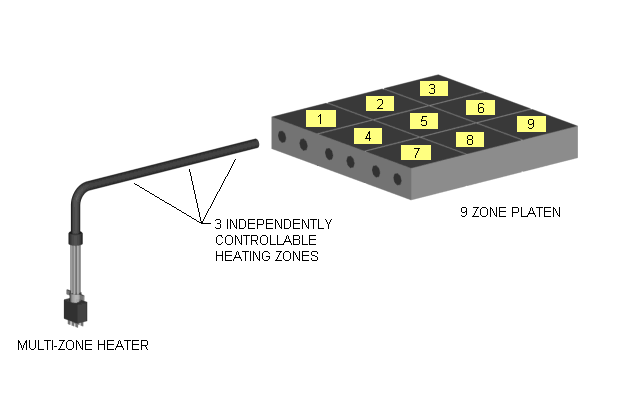

Multi Zone or Multi-Cell Cartridge Heaters with Three Independently Controllable Zones or Distributed Wattage Options

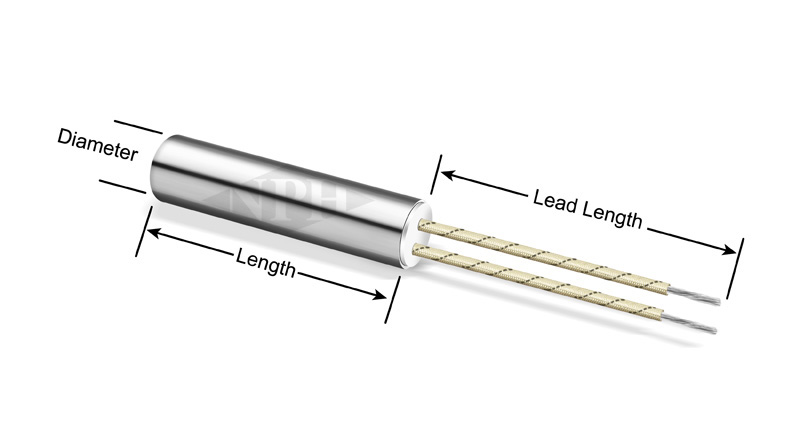

Images of Cartridge Heaters Above with One to Three Independently Controllable Zones or Distributed Wattage Options

Zoned Heater or Multicell/Multizoned Cartridge Heaters:
Zoned heating is where a specific section of the heater has its own "dedicated" wound coil with uniform pitch and its own set of power leads for each particular section of a heater. The internal coil construction within this particular type of heater has sections or zones of dedicated uniformly wound coils.  The key word in this construction style is "dedicated".  The customer can literally control each section of heater individually. The heated area is very specific and controllable. For example a 2-zone heater will have 4 power leads coming out of it; a pair of leads for each zone. Sometimes a common wire may be used; in this 2-zone example, the number of leads can be reduced because each zoned coil shares a common lead. A heater like this would have 3 power leads.

Application of Zoned Wattage Cartridge  Heaters:
Zoned heaters can be used in any application distributed wattage heaters are used, but in most cases this would probably be over kill and not justify the added expense of the zoned or multicell cartridge heater.  Zoned heaters are best used in applications requiring a significant level of heat control over of the length of the heater.  Multizoned cartridge heaters can have various sections literally turned off entirely while only a fraction of the entire heater is energized.  These insertion heaters are commonly used in heater bar(sealing bar) applications where heat control at precise locations is an important factor.

Application of Cartridge  Heaters in Gundrilled Platens/Plates-Aluminun, Stainless Steel & Steel:

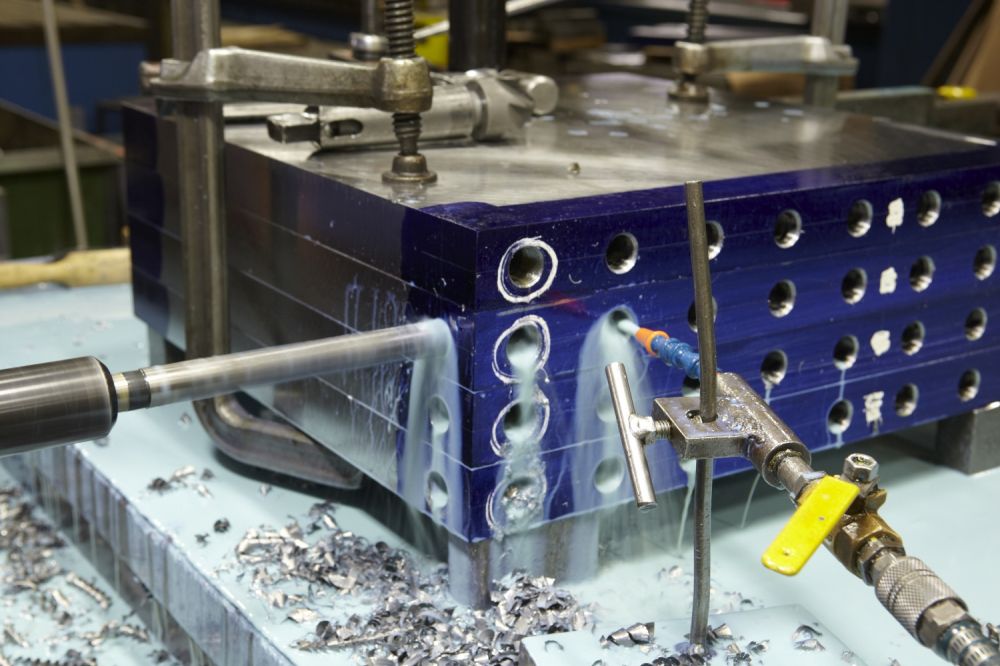

Gundrilled Platens/Plates and Mold Bases - Electric Heated Platens Using Cartridge Heaters

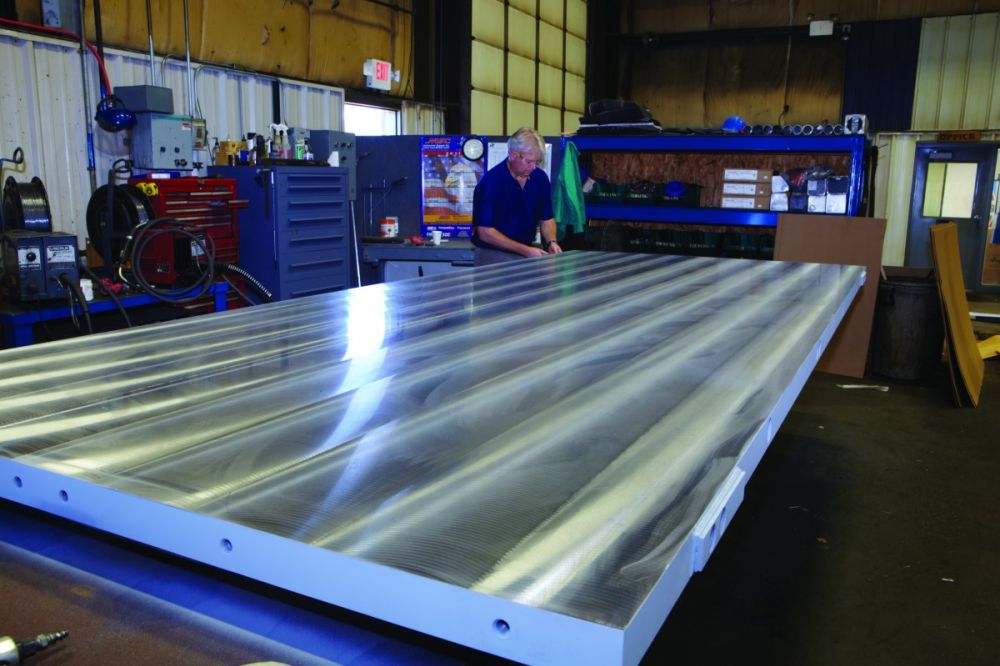

Long Hole Gundrilled Platens - Final Inspection




          Heater Bar (Sealing Bar)
          Heated Platens (Single & Multiple Zones)
          Hot Forging Dies
          Heat Treating Processes
          Super Plastic Forming
          Food Industry Platens
          Hazardous Waste Treating Systems
          Packaging Industries
