Mineral Insulated Band Heaters:

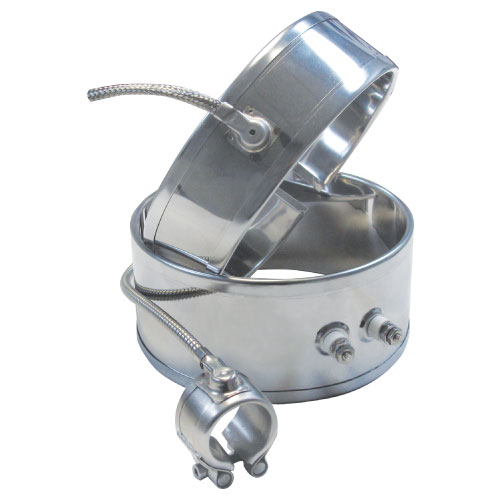

     Mineral Insulated Band Heaters                                                                   MI Band Heaters


Product Description-Mineral Insulated Band Heaters:

Mineral insulated band heaters are rugged and heavy duty heaters made for applications that require high temperatures (up to 1400ºF) and high watt densities (up to 100 W/in²). These heaters are ideal for increasing output especially in injection molding and to meet the heating requirements to process newly engineered high tech resins.

The nickel chrome resistive material inside a mineral insulated heater is embedded in Aluminum Oxide insulating medium which provides excellent heat transfer and dielectric strength. A stainless steel outside casing gives external protection.

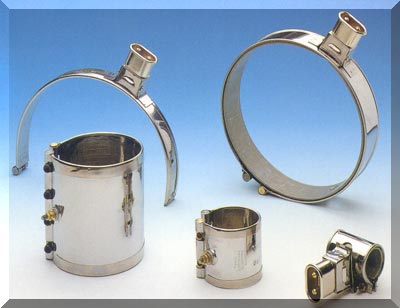

Mineral insulated band heaters are made with various clamping mechanisms, electrical termination styles, thermocouples and can be manufactured with holes and cut-outs.

Mineral Insulated (MI) Band Heaters Benefits:

  • Provides an almost instant response to temperature control and eliminates thermal lag and temperature overshoot associated with ceramic insulated heaters
  • Allows safe melting of resins such as PEEK™, Teflon®, Ultem® and Zytel®
  • Contributes to faster heat-up and throughput for increased productivity
  • Resists contamination from overflow of plastic or other free-flowing materials

Mineral Insulated Band Heaters: Specifications, Manuals, Technical Letters & Tips:

 How to Extend the Life of Your Immersion Heater-2 Mica and Mineral Insulated.pdf
 How to Extend the Life of Your Immersion Heater-2 Mica Band Heaters & Nozzle Heaters Order Form.pdf


  • High Operating Temperature Applications
  • Blown Film Dies
  • Extruders
  • Injection Molding Machines
  • Other Cylindrical Heating Applications

How To Order Mineral Insulated Band Heaters:
