Melt Pressure Transducers



Melt Pressure Transducers-Description

Pressure Transducers are designed to measure pressure up to 20,000 PSI. Pressure Transducers are available with a variety of outputs like 0 - 5 Volts, 4-20 mAmps,1 to 6 VDC 0.1 to 5.1 VDC or millivolts. Measurements can be made in Gage, absolute, Barometric, Differential, compound or vacuum.


Pressure Transducers are available in accuracy's ranging from 0.05% full scale to 1 % full scale and are ideal for most applications where pressure needs to be measured or controlled.

Pressure Transducers units are capable of operating in harsh environments and can handle over pressures up to 3 times their rated pressure. Heavy industrial construction make them shock and vibration resistant, and readily available with NEMA 4 or explosion proof housings.

Pressure Transducers can be used in Hazardous locations, R & D Laboratories, Vacuum Systems etc.

Pressure Transducers Features:

  • Heavy duty shock and vibration resistant
  • Explosion proof or NEMA 4 option
  • Intrinsically safe with various connections
  • High operating temperature range
  • Gas, liquid or solid compatible
  • Differential, gage, absolute, vacuum or barometric measurement
  • High accuracy

Pressure Transducers Specifications and Design Applications

Pressure Ranges. . . . . . 0 to 25, 50, 100, 1000, 3000, 5000, 10,000, 20,000
PSI Accuracy. . . . . . . . 0.03 to 1 % of full Scale per model
Electrical Connection. . .Conduit, Pigtail, or Terminal Strip
Output Signal. . . . . . . . .Voltage, Millivolts, Current, Digital (RS-232)
Type of Measurement. . .Barometric Gage, Vacuum, Absolute Differential
Temperature Range. . . .0 to 250 degrees Normal. High 750ºF
Types of housing. . . . . .General Purpose, NEMA 4, Explosion proof/FM
                                    Intrinsically safe, Sanitary/High Purity
Adjustment. . . . . . . . . . Zero and span External or internal per model
Media Compatibility. . . .Gas, Liquid, Corrosive Liquids/gases, Wet/dry Air,
                                    Inert gases


Melt Pressure Transducers,Melt Pressure Measurement, Pressure Instrumentation

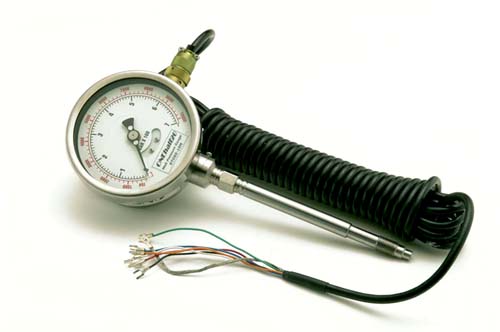

RTG6S-Melt Pressure Gauge, 6" Rigid Stem 6 Pin -Connector 1/2-20 UNF Thread

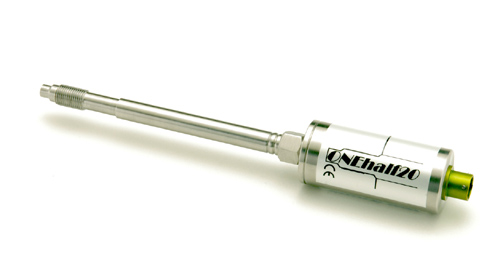

RT6S-Melt Pressure Transducer-Rigid 6" Stem

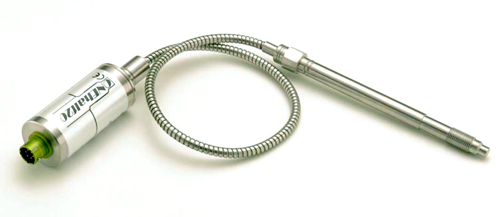

CT6S-Melt Pressure Transducer - Flex Armor -6 and 8 Pin Models

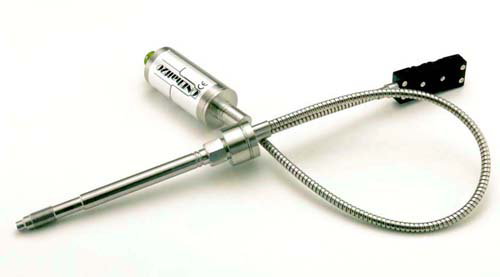

CT6S-Melt Pressure Transducer - 18" Flex Armor -With Type J T/C, 1/2- 20 UNF

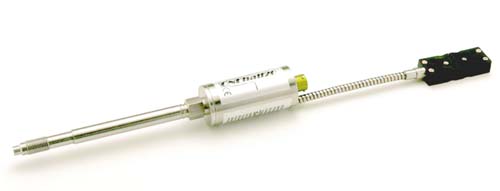

RT6S-Melt Pressure Transducer - With 6" Rigid Stem -With Flex Armor & Type J T/C

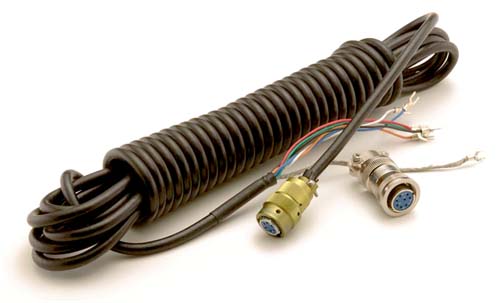

Melt pressure Transducer Extension Cable-2 Lengths -6 & 8 Pin Options

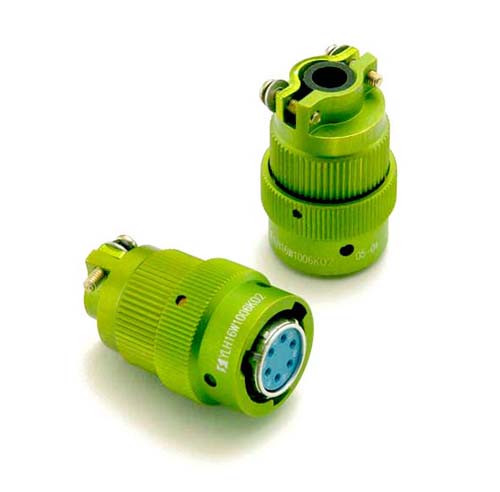

Melt Pressure Transducer Connectors-6 & 8 Pin
