Industrial Process Thermocouples and Assemblies

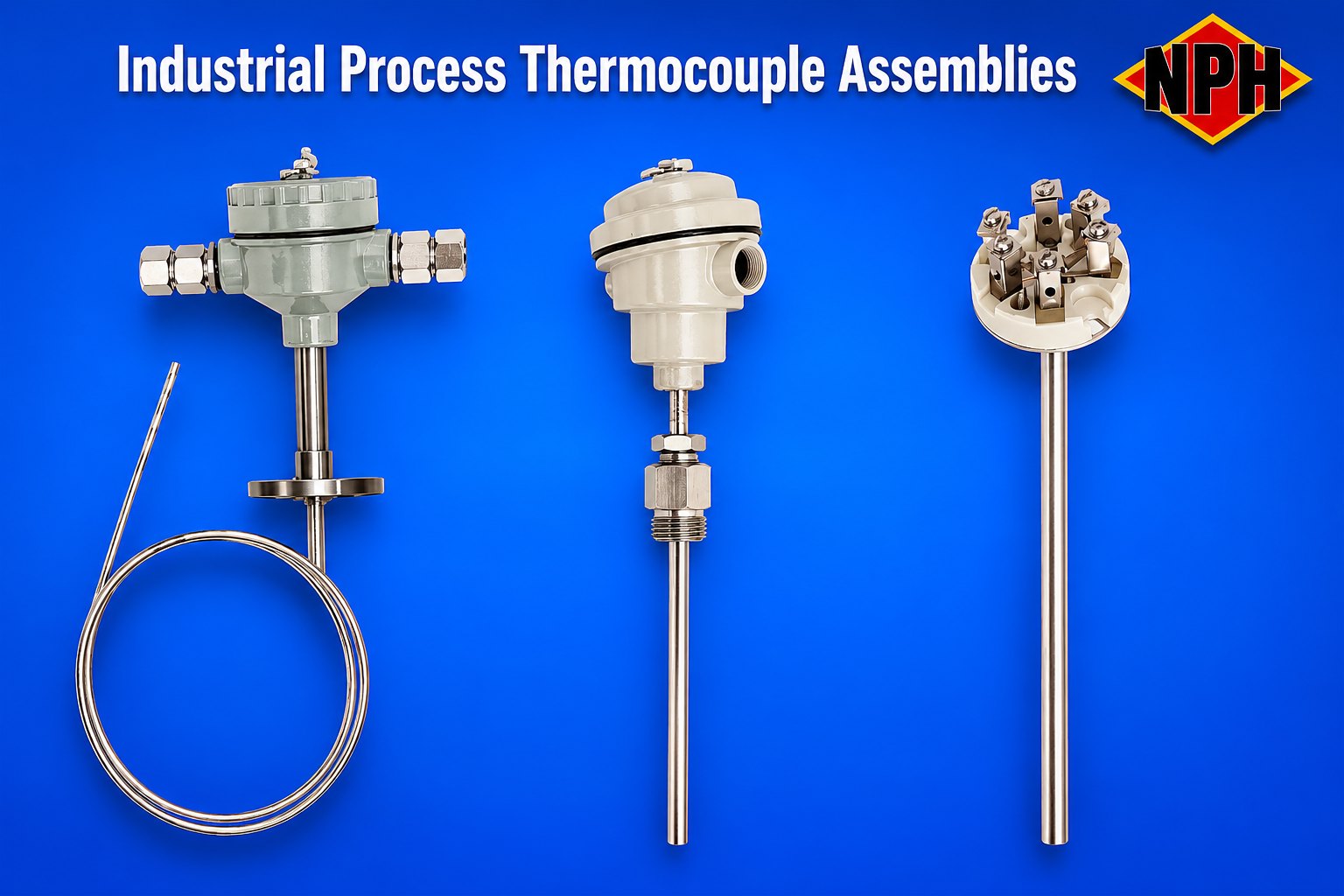

Industrial Process Thermocouple Assemblies

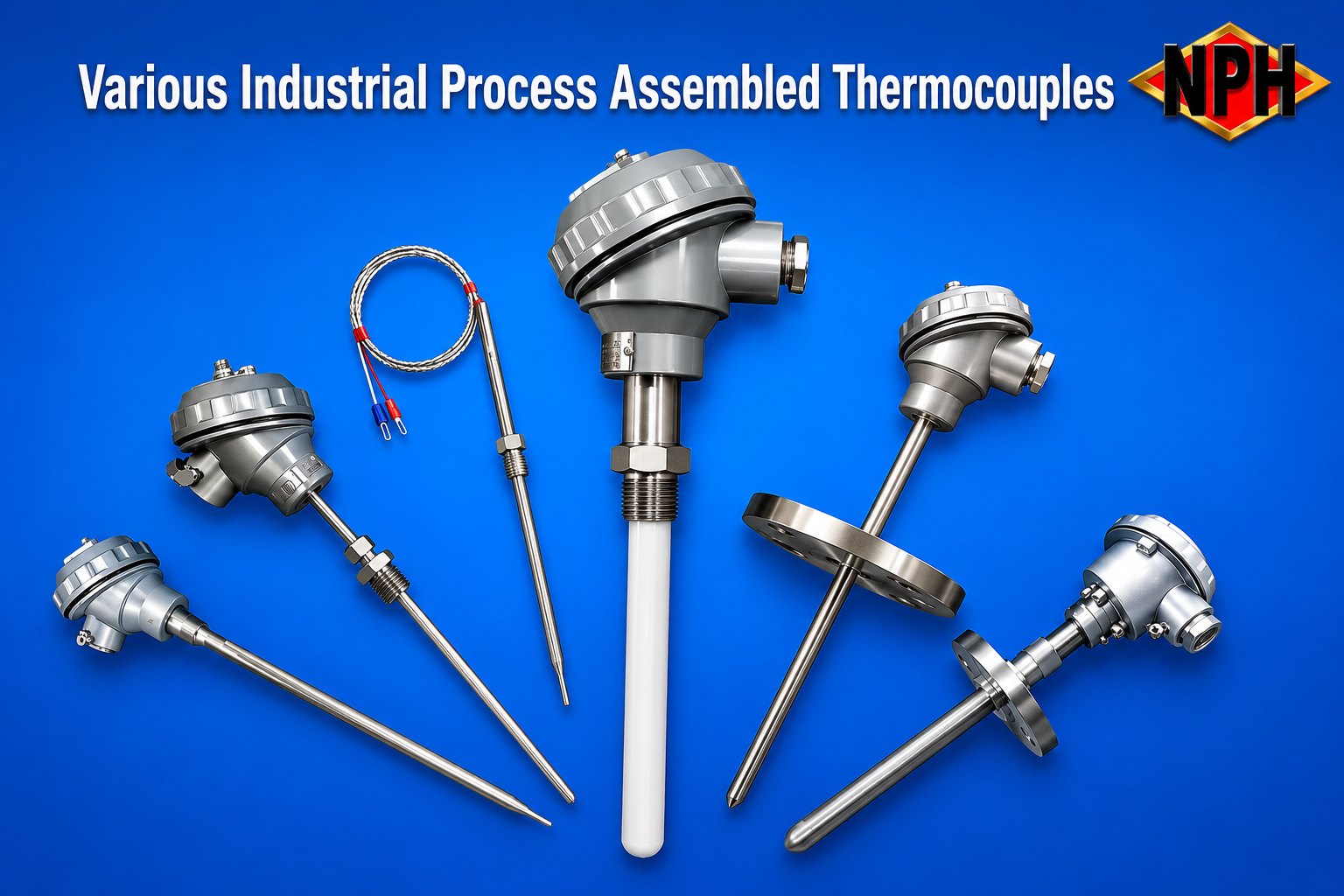

Various Industrial Process Assembled Thermocouples

High Temperature Industrial Process Thermocouples, RTD Sensors and Temperature Sensor Assemblies for Industry

Industrial Process Temperature Sensors, Thermocouples and RTD Assemblies

Industrial process temperature sensors, thermocouples and RTD assemblies are critical components used to monitor and control temperature in demanding industrial applications. High temperature thermocouples and RTD sensors provide accurate thermal feedback for process control, equipment protection, energy efficiency and product quality across a wide range of industries.

What Are Industrial Thermocouples?

Thermocouples are temperature sensors manufactured by joining two dissimilar metal conductors together at a sensing junction. When heated, the junction generates a millivolt signal proportional to temperature. Industrial thermocouple assemblies are valued for their fast response time, wide temperature range, durability and vibration resistance.

What Are RTD Sensors?

RTD sensors, or Resistance Temperature Detectors, operate by measuring the resistance change of a precision platinum element as temperature changes. PT100 RTD assemblies are commonly used where higher accuracy, repeatability and long-term stability are required.

High Temperature Industrial Sensor Assemblies

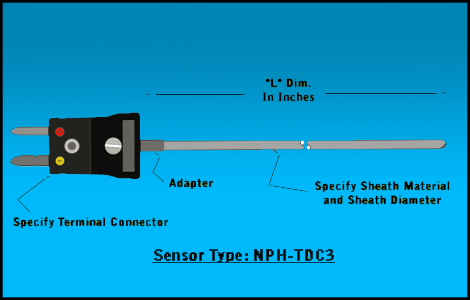

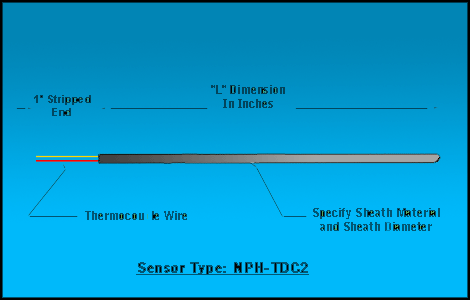

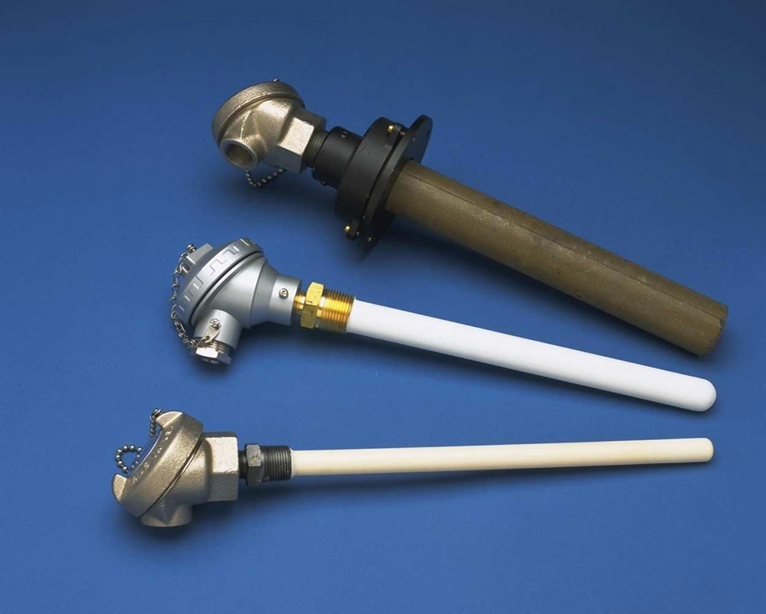

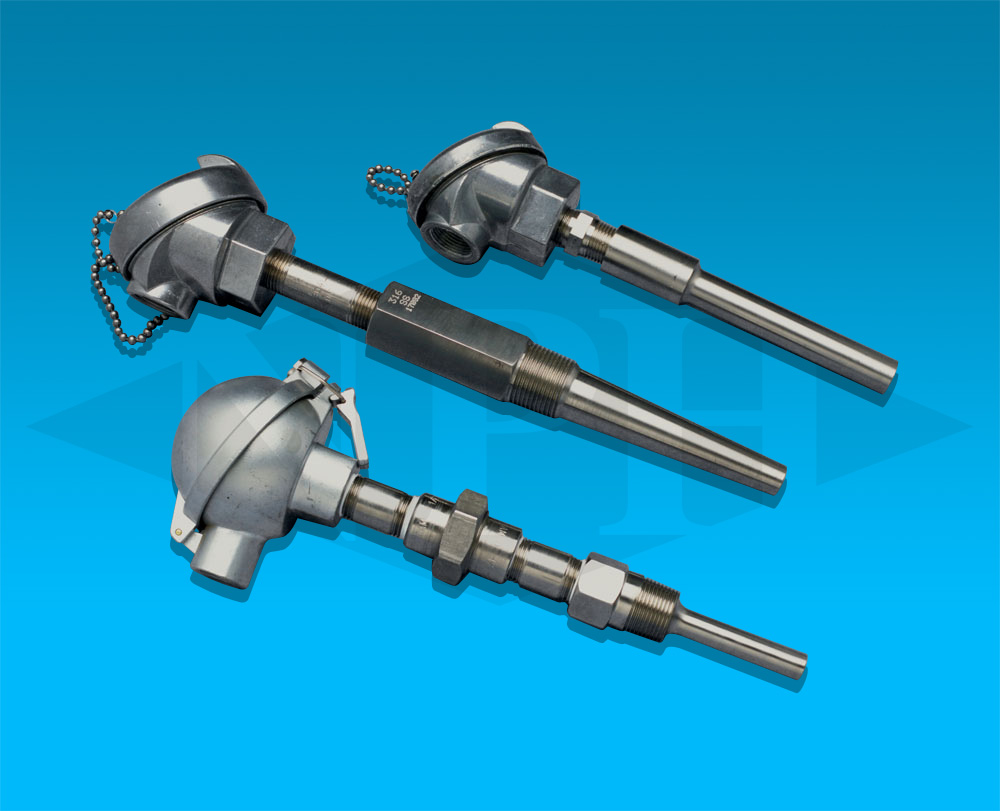

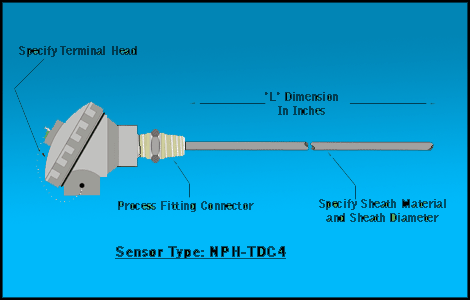

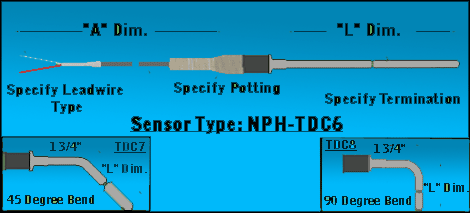

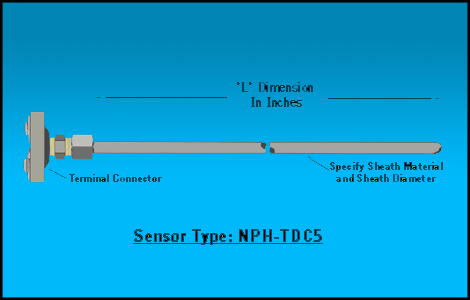

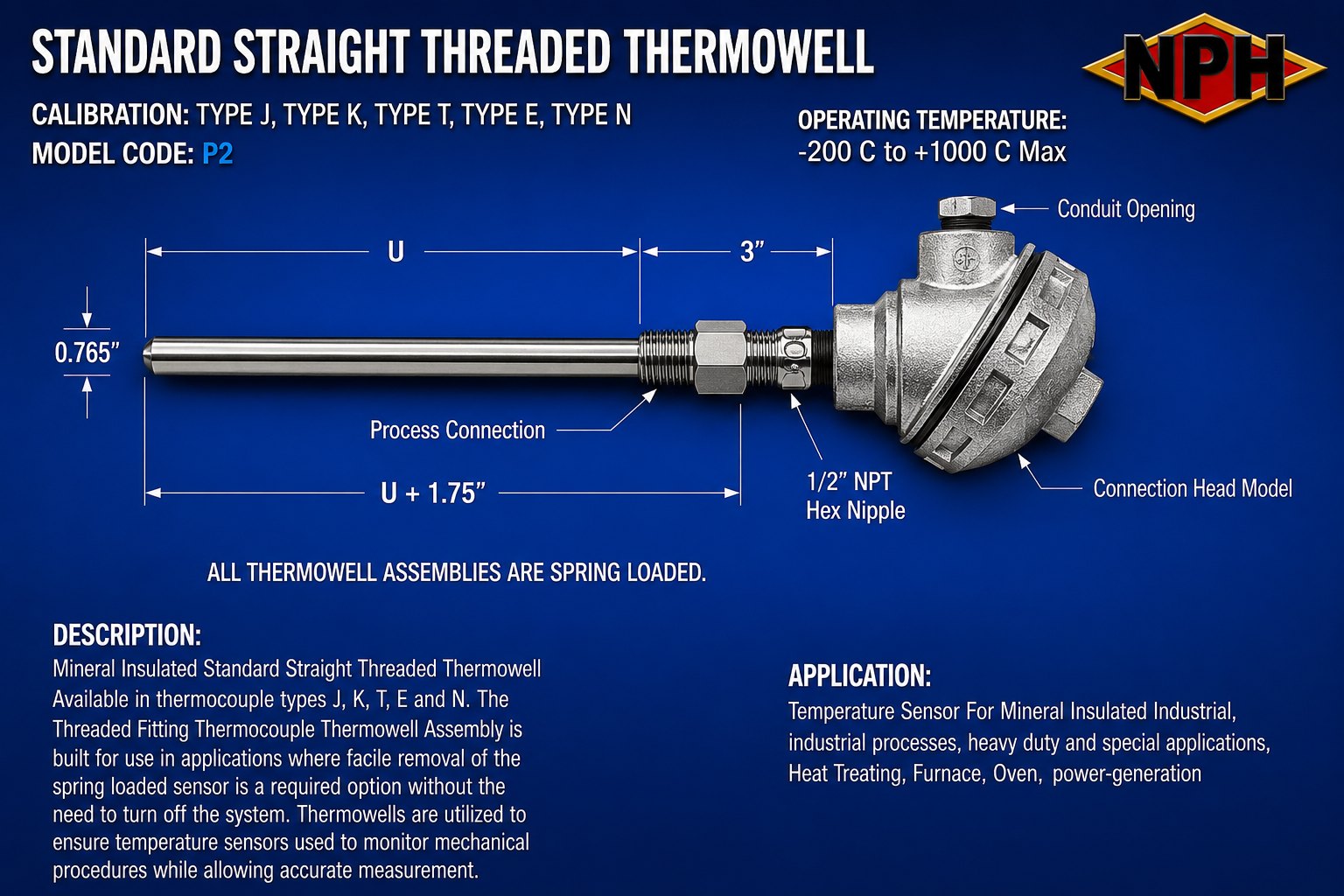

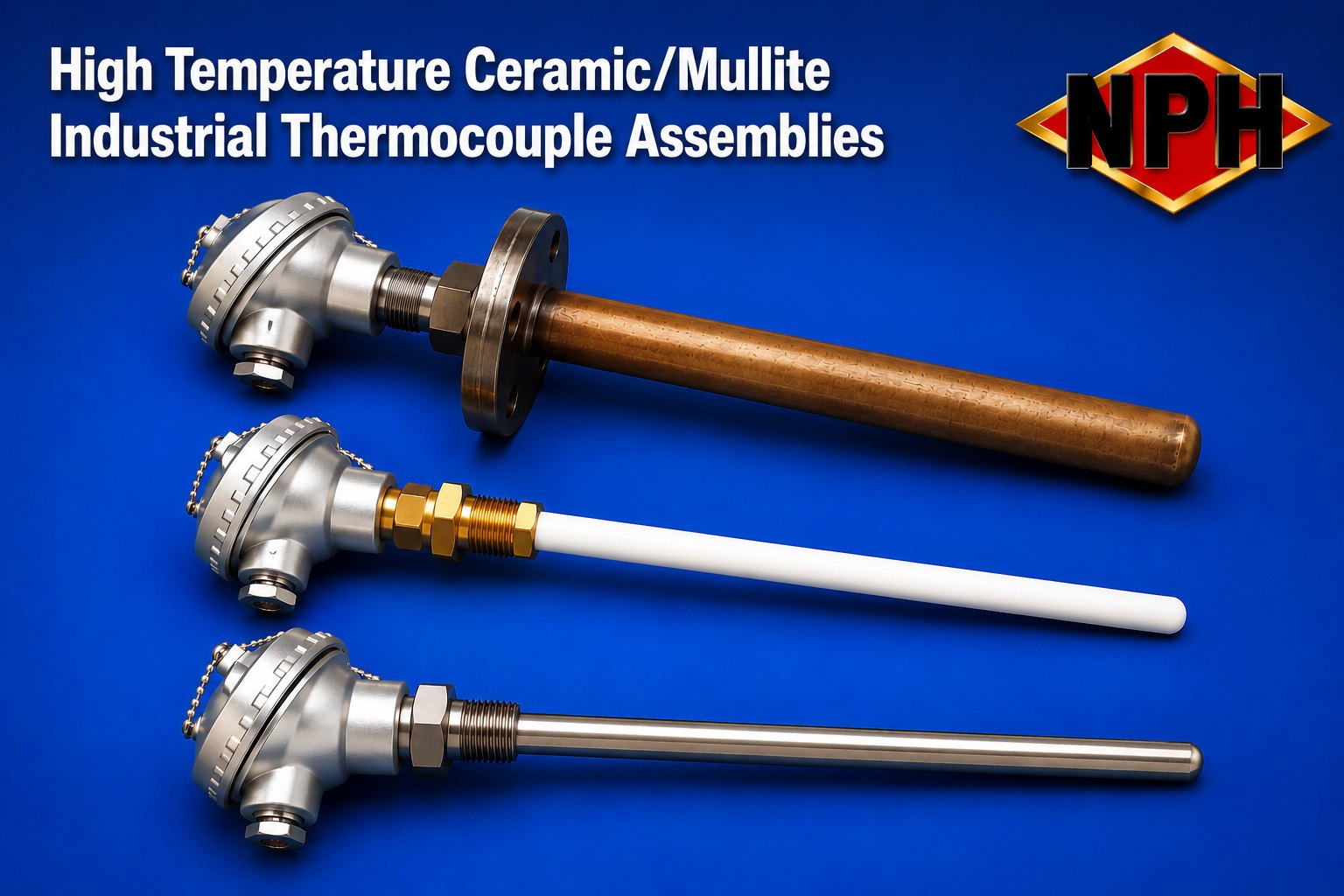

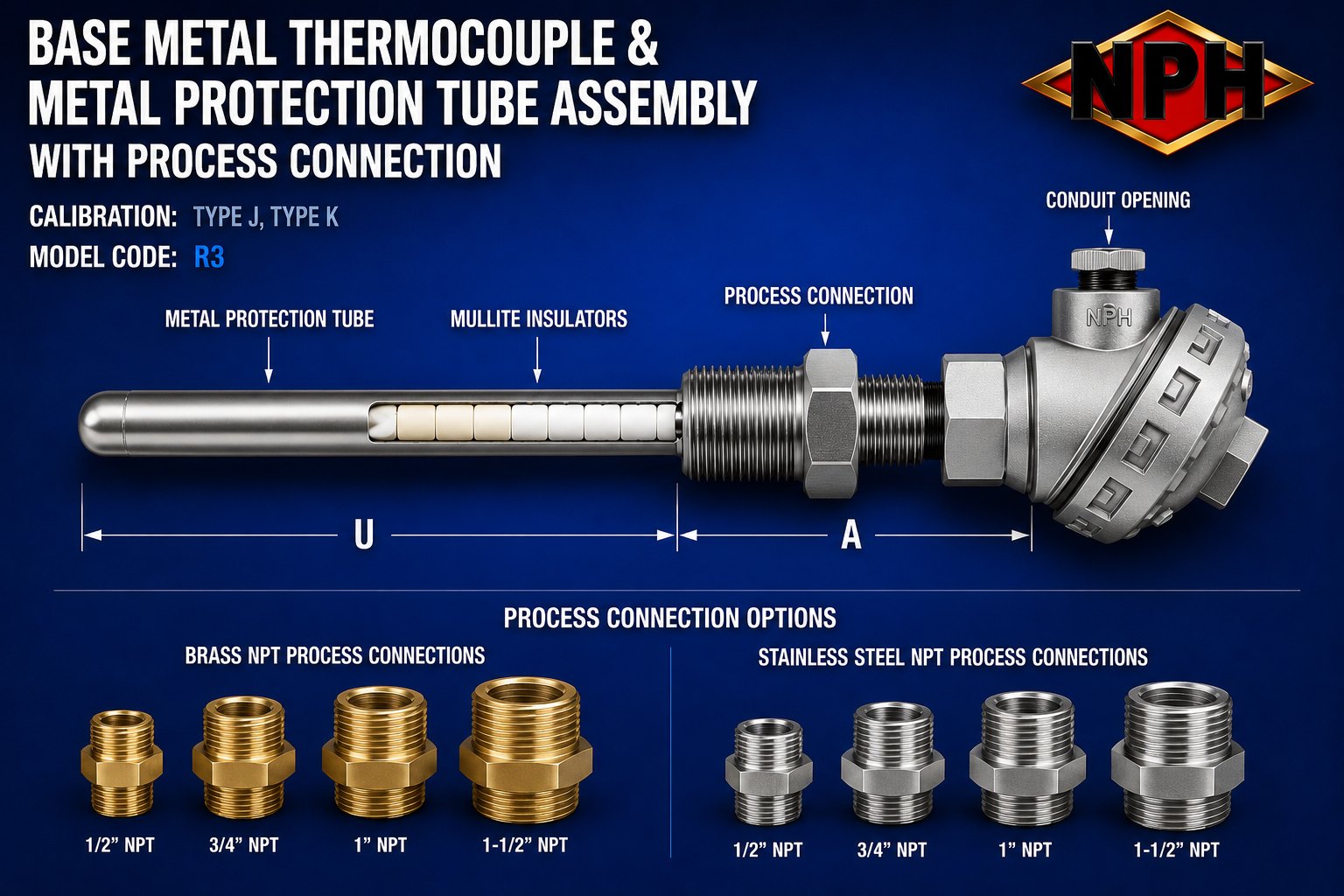

High temperature industrial thermocouple and RTD assemblies are available in mineral insulated constructions with stainless steel, Inconel, ceramic or refractory metal protection sheaths for operation in harsh industrial environments. Common assembly styles include bayonet thermocouples, tube and wire assemblies, melt bolt thermocouples, nozzle sensors, ring sensors, immersion probes, threaded probes and custom industrial process assemblies.

Top Industries Using Industrial Temperature Sensors

Plastics and packaging
Chemical and petrochemical processing
Heat treating and furnace manufacturing
Aerospace and defense
Semiconductor manufacturing
Food processing and pharmaceutical systems
Power generation
Automotive manufacturing
Steel, foundry and metal processing
Industrial ovens and thermal processing equipment

Typical applications include injection molding machines, extrusion systems, furnaces, kilns, reactors, heat exchangers, boilers, dryers, hot runner systems and industrial process heating equipment.

Common Industrial Temperature Sensor Types

Sensor Type	Typical Temperature Range
Type J Thermocouple	0°C to 750°C
Type K Thermocouple	-200°C to 1250°C
Type T Thermocouple	-200°C to 350°C
Type N Thermocouple	0°C to 1300°C
PT100 RTD Sensor	-200°C to 600°C
Ceramic High Temperature Thermocouple	Up to 1700°C

Benefits of Industrial Thermocouple and RTD Assemblies

Industrial thermocouple assemblies offer several advantages including rapid response, compact design, high temperature capability and excellent mechanical durability. Mineral insulated thermocouples provide superior vibration resistance, moisture protection and longer service life in severe industrial environments.

RTD assemblies provide excellent accuracy and repeatability for precision process control systems where stable measurement performance is essential.

Frequently Asked Questions

What is the difference between a thermocouple and an RTD?

Thermocouples offer wider temperature ranges and faster response times, while RTDs provide higher accuracy and long-term stability.

Which thermocouple is best for high temperature applications?

Type K and Type N thermocouples are commonly used for high temperature industrial applications due to their broad operating range and oxidation resistance.

Where are industrial thermocouples commonly used?

Industrial thermocouples are used in plastics processing, furnaces, ovens, heat treating, chemical processing, extrusion systems and power generation equipment.

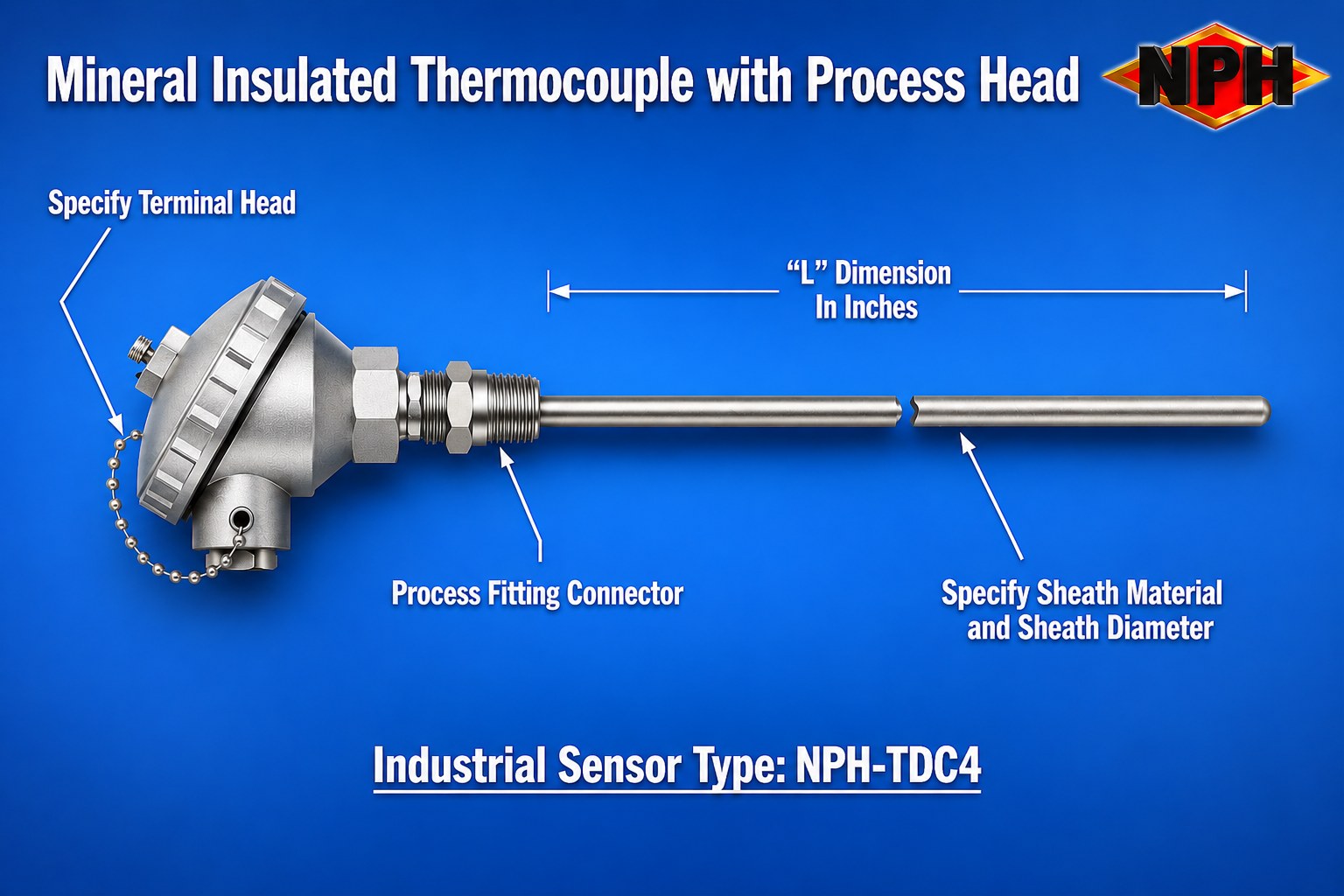

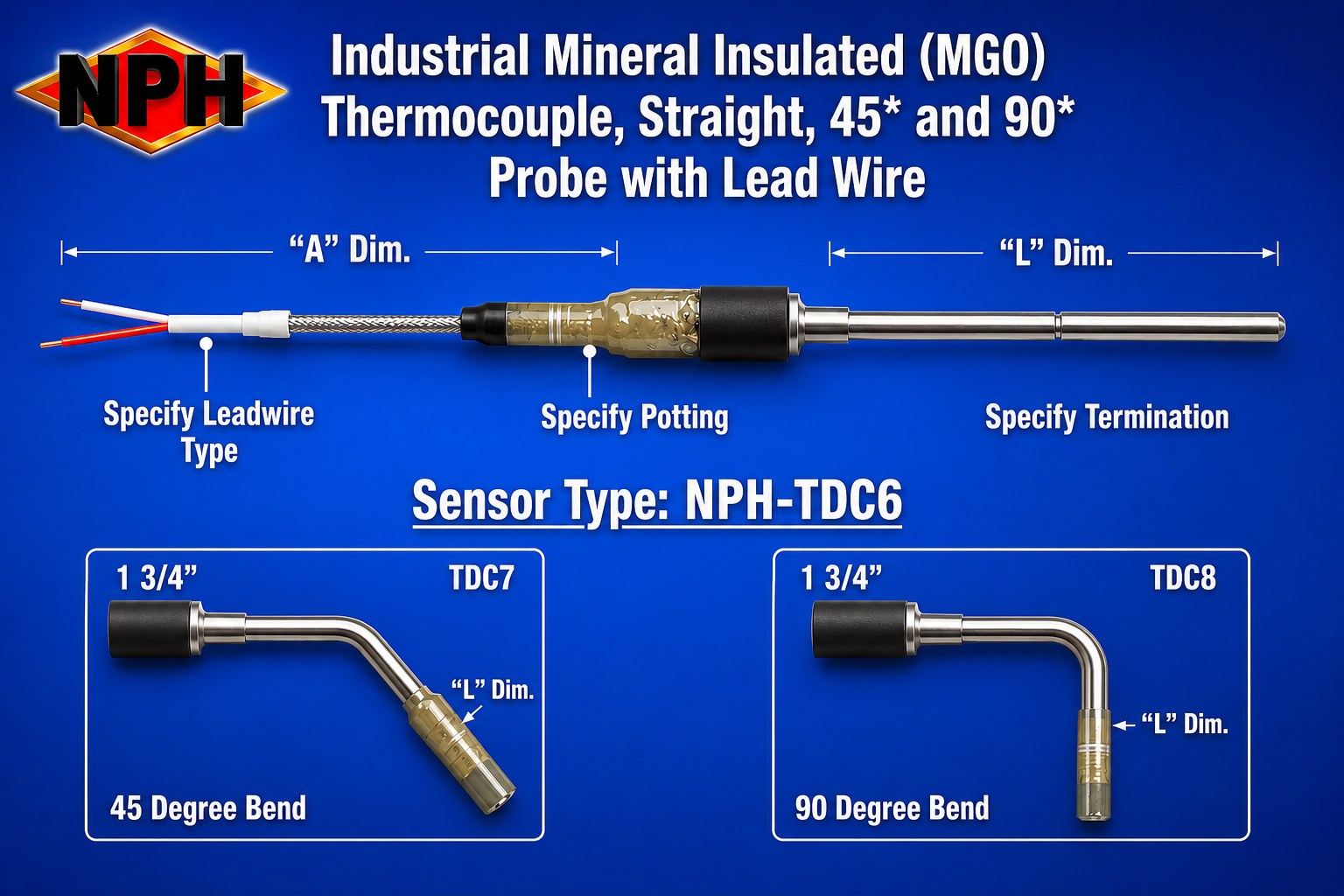

What is a mineral insulated thermocouple?

A mineral insulated thermocouple uses compacted magnesium oxide insulation inside a metal sheath for improved durability, vibration resistance and thermal performance.
