Heavy Duty Silicone Rubber Drum Heaters & Pail Heaters




Heavy Duty Silcone Rubber Drum & Pail Heaters

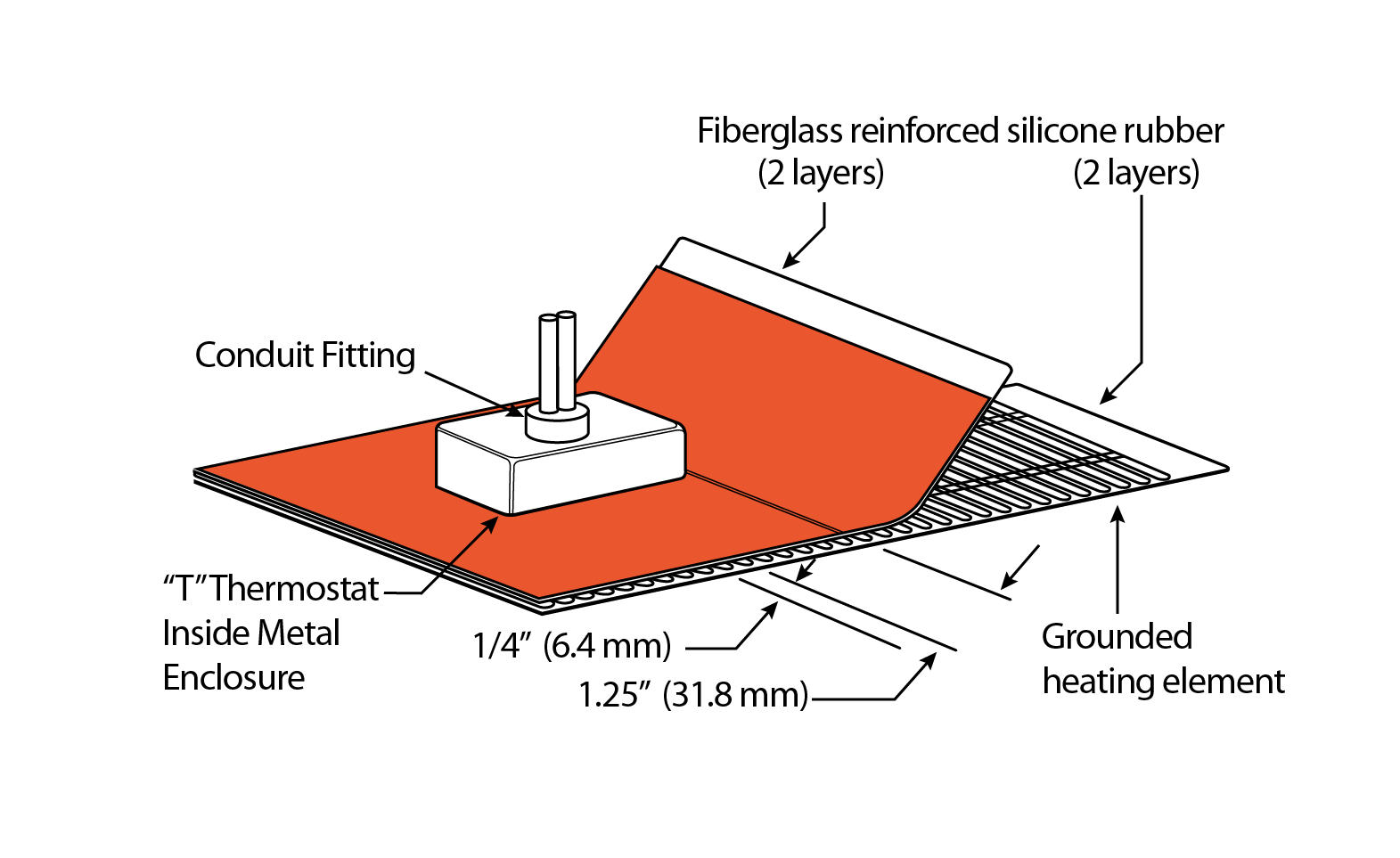

Heavy Duty Silicone Rubber Drum Heater Construction

HEAVY DUTY SILICONE RUBBER DRUM HEATERS & PAIL HEATERS

Product Highlights:
Experience the NPH Difference: Extra Wide, Extra Strong, Easier-to-Use
  •   4" wide drum heater at a 3" price
  •   Excellent solution for a wide range of poly and metal drum applications
  •   Extra long service life: Excellent strength and durability
  •   Patented grounded heating element meets NEC 427.23
  •   Easy adjustable thermostat control displays in oF or oC
  •   73/23/EEC (Low voltage directive)

Specifications:

  • Heating element is laminated between two extra thick layers of 20mil fiberglass reinforced silicone rubber
  • Patented 360o grounded multi-stranded heating element is uniformly placed to maximize heat distribution
  • Adjustable thermostat*
                                 50* to 425*F (10*-218*C) for metal drums
                                 50* to 160*F (10*-71*C) for poly drums
  • 450*F (232oC) maximum exposure temperature on heating surface
  • Dielectric strength of over 2000 volts
  • Moisture and chemical resistant
  • Power cord 6 feet (1.8m) long with
  • 120VAC: Standard 3-prong plug (NEMA 5-15)
  • 240VAC: Bare wire connection
  • The spring closure can be expanded 3" (76mm)
* If precise temperature control is required for your application, please contact     us or your local distributor for application assistance and product solutions

  • Viscosity control
  • Freeze protection
  • Temperature maintenance
  • Biofuel / Biodiesel
  • Melting of solids
  • Heat-up drum contents to a required temperature
  • Thermal mixing
  • Much more

Heavy Duty Silicone Rubber Drum Heaters and  Pail Heaters: Specifications, Manuals, Technical Letters & Tips:

 Flanged Immersion Heaters Specifications Heavy Duty Silicone Rubber Drum and Pail Heaters


Standard Sizes:
Gallon (Liter) Size Diameter in (mm) Length in (mm) Width in (mm)
5 (19) 11.1 (282) 35.0 (889) 3.6 (92)
15 (57) 14.0 (355) 44.0 (1118) 3.6 (92)
30 (114) 18.6 (473) 58.5 (1496) 3.6 (92)
55 (208) 22.3 (565) 70.0 (1778) 3.6 (92)


How To Order Silicone Rubber Drum Heaters & Pail Heaters

1)    Specify 5, 15, 30 or 55 Gallon Drum or pail Heaters
2)    Specify Watts and Volts
3)    Specify T Rating - T3 or T4A. See Chart above for ratings
4)    Specify part number from charts above
5)    Provide specific heat of material being heated
6)    Specify material being heated
7)    Specify number of units required
8)    Specify type of application and its parameters
