"Nextflex" Flexible/ Formable/Bendable Tubular Heaters





Product Description Review:

With "Nextflex" Tubular Flexible Heaters-you never have to wait for a custom bent tubular heater again. User formable in three dimensions and available in 6.5, 8.0, 8.5, and 10 mm diameters-NPH's Nextflex® formable tubular heaters are proving to be the long lasting alternative to traditional tubular heaters for end users and OEMs alike.

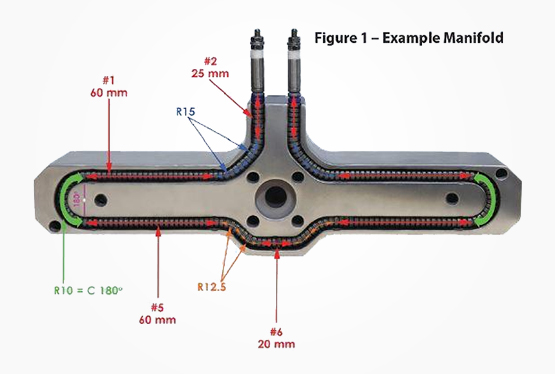

The "Nextflex" formable tubular heaters eliminates costly downtime associated with waiting for a custom bent tubular heater. Same day shipping in straight lengths, simply installed, easily stored, and improved thermal performance compared to traditional tubular heaters, the "nextflex" heater is your best choice for immediate, durable, high performance replacement heaters. OEMs who standardize on "nextflex" heaters have found they can reduce lead time for manifolds and plates requiring bent tubular heaters. Nexflex heaters have improved heat transfer and do not expand when installed. Installation cannot be easier, simply start in the middle of your mold channel, forming first at the marked center location of the Nextflex, then tap in with a Teflon or rubber mallet working your way to each end.

 National Plastic Heater Formable "Nextflex" Tubular Heaters- Benefits and Advantages:
  •   Immediate stock sizes available
  •   More even distribution of heat when compared to a standard tubular heater

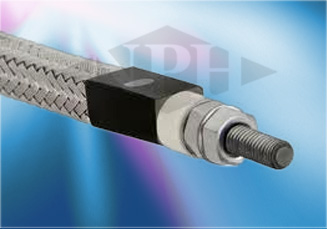

  •   Moisture resistant pin connection
  •   Improved durability vs. a standard tubular heater
Flexible/Bendable Tubular Heaters "Nextflex"-Technical Specifications:

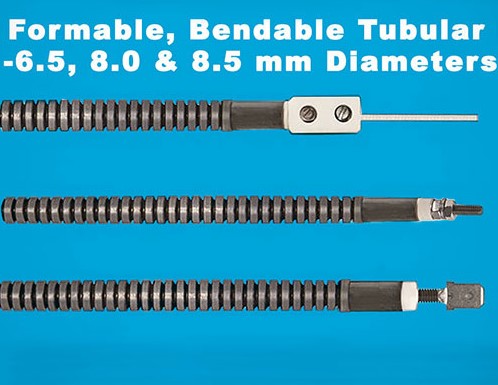

  •    6.5, 8.0, 8.5, and 10 mm Diameters
  •    Minimum Bending radius R10
  •    30 mm unheated zones at each end
  •    Wattage tolerance +/- 10%
  •    Diameter tolerance +/- 0.1 mm

"Nextflex" Manifold Formable Flexible Tubular Heaters: Specifications, Manuals, Technical Letters & Tips:

  Installation:Nextflex Tubular Heaters.pdf


Applications Guide: Formable/Flexible/Bendable Tubular Heaters

  •   Plastic Injection Molding
  •   Rubber Molding
  •   Packaging
  •   Plastic Welding
  •   Plate Heating
  •   Specialty heated tools
  •   Food Processing Market

UL World Globe CSA US
