Hazardous Area Explosion Proof Silicone Rubber Heater Blankets

Explosion Proof Silicone Heater

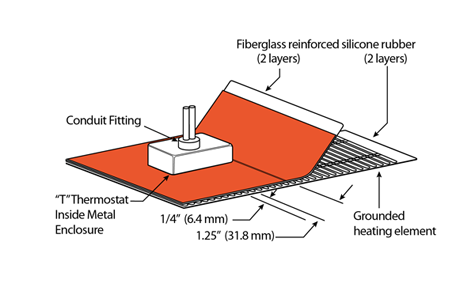

Explossion Proof/Hazardous Area Silicone Rubber Hetaers-Construction

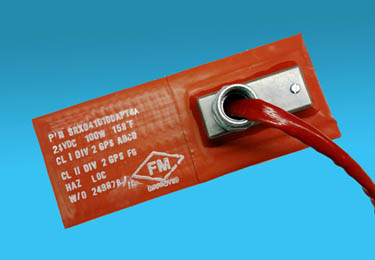

 Hazardous Area Rated Silicone Rubber Heaters Explosion Proof T Thermostat

Hazardous Area Explosion Proof Silicone Rubber Heaters and Blankets-Product Description

These exclusive hazardous area explosion proof resistance heaters have FM approval. Approved Class I Division 2 Groups A, B, C, and D. Class II Division 2 Groups F and G.  Suitable for a large range of explosion resistant applications and  surfaces like tanks, hoppers, conveyors, silos, etc. Exceptional durability, moisture and chemical resistantance.  Easy-to-apply industrial strength pressure sensitive adhesive backing option.  Patented grounded heating element for your safety meets NEC 427.23. 0.75 inch (19mm) conduit fitting. High-limit thermostat designed to keep heater below NEC article 500 T-rating. Silicone rubber power leads: 12 inch (305mm) long. Power density: 2.5 watts/in2 (.004 watts/mm2). Patented grounded heating element is laminated between two layers of 23 mil and two layers of 25 mil fiberglass reinforced silicone rubber. Nominal silicone rubber density 26 oz / yd2 (881 grams / m2) per layer. Exposure temperature range: -60 degrees F to 400  degrees F (-51 degrees C to 204 degrees C). Dielectric strength over 2000 volts. Moisture, chemical, and radiation resistant. Suitable for use on metal surfaces. 120 or 240VAC. Bare wire connection. Temperature controller required.

Hazardous environments have special considerations in order to keep it safe such as auto-ignition points. No matter what needs to be heated, we have a solution that meets the rigorous criteria of a hazardous area.
  •  Exclusive hazardous-area approval
  •  Class I Division 2 Groups A, B, C, and D
  •  Class II Division 2 Groups F and G
  •  Suitable for a large range of surfaces like tanks, hoppers, conveyors, silos, etc.
  •  Exceptional durability
  •  Moisture and chemical resistant
  •  Easy-to-apply industrial strength pressure sensitive adhesive backing option
  •  Patented grounded heating element for your safety meets NEC 427.23

Hazardous Area Explosion Proof Heater Specifications:

  •   0.75" (19mm) conduit fitting (Female NPSM 3/4" x 1/4" conduit fitting)
  •   High-limit thermostat designed to keep heater below NEC article 500 T-rating
  •   Silicone rubber power leads: 12" (305mm) long
  •   Power density: 2.5 watts/in2 (.004 watts/mm2)
  •   Patented grounded heating element is laminated between two layers of 23 mil and two layers of 25 mil fiberglass  reinforced silicone rubber
  •   Nominal silicone rubber density 26 oz / yd2 (881 grams / m2) per layer
  •   Exposure temperature range: -60oF to 400oF (-51oC to 204oC)
  •   Dielectric strength over 2000 volts
  •   Moisture, chemical, and radiation resistant
  •   Suitable for use on metal surfaces
  •   120 or 240VAC
  •   Bare wire connection
  •   Temperature controller required
T Rating
NEC Temperature
Actual High Limit Thermostat
T3
392oF (200oC)
292oF (145oC)
T4A
248oF (120oC)
158oF (70oC)

Hazardous Area Explosion Proof Silicon Rubber Heater Blankets: Specifications, Manuals, Technical Letters & Tips:
