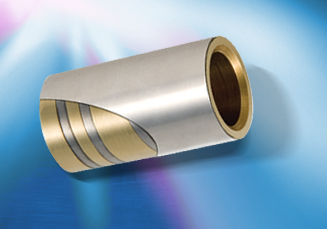

Pressed in Brass Coil Heaters, Hot Runner Pressed In Brass Heaters

Cast In Aluminum, Brass or Bronze Nozzle Heaters

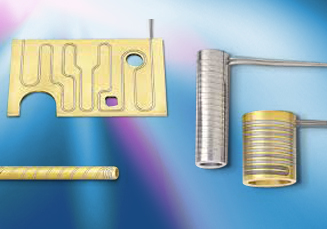

Pressed in Brass Coil Heaters- Small Manfolds

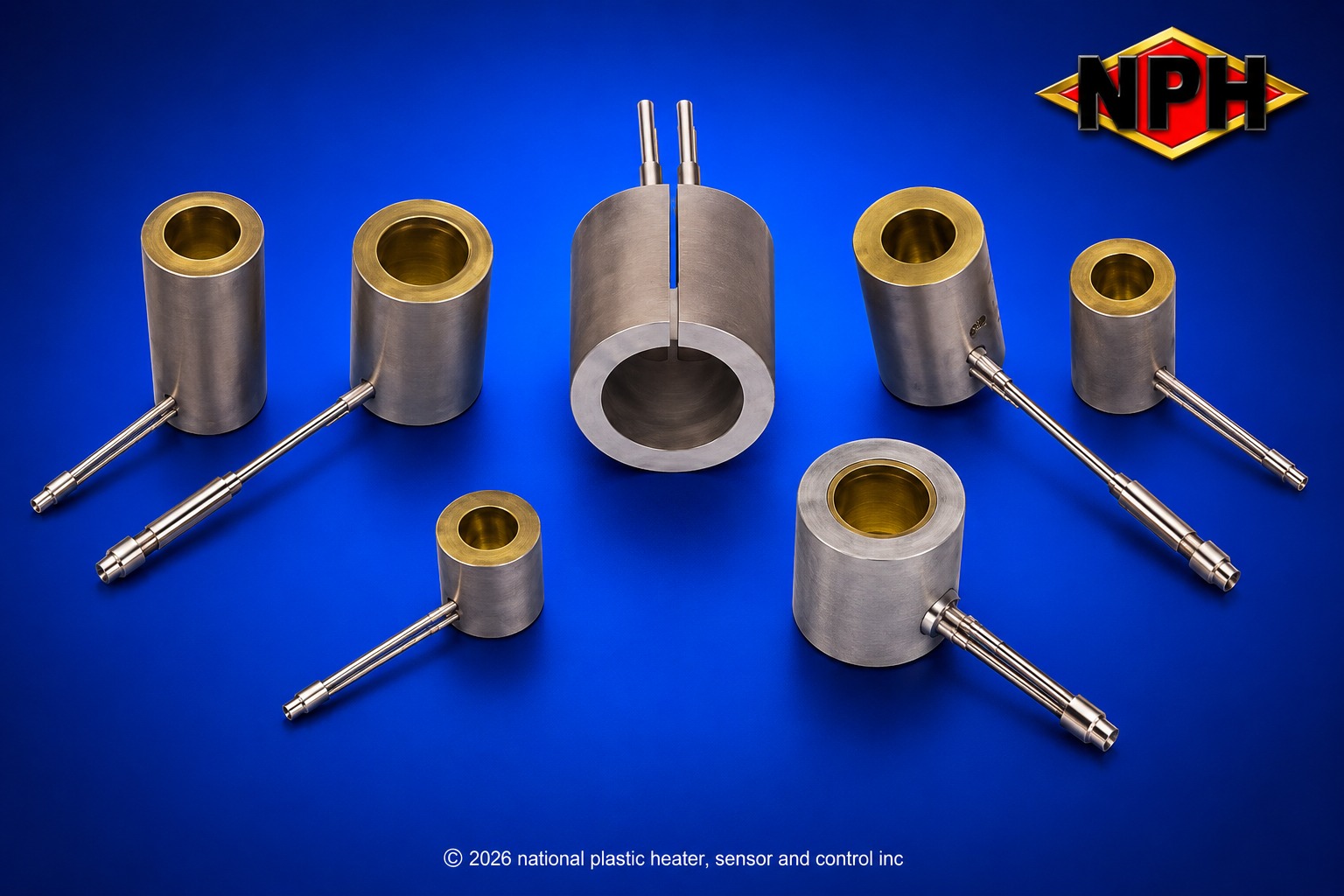

Cast in Bronze-Brass Alloy Nozzle Heaters

Cast-In Bronze/Brass Alloy Nozzle Heaters – Description

Cast-In Bronze/Brass Alloy Nozzle Heaters are heavy-duty electric heaters designed for high temperature nozzle heating applications requiring excellent thermal conductivity, uniform heat distribution, durability and long service life. These heaters are manufactured by permanently embedding tubular heating elements into precision cast bronze or brass alloy bodies that are machined to fit injection molding machine nozzles, extrusion dies, manifolds and other industrial process heating equipment.

Compared to conventional mica insulated nozzle heaters, cast bronze/brass alloy nozzle heaters offer superior heat transfer efficiency, improved physical strength, better resistance to mechanical damage and enhanced temperature uniformity. The solid cast construction provides excellent contact with the nozzle surface while minimizing hot spots and uneven heating conditions that can negatively affect plastics processing operations.

Cast-In Bronze/Brass Alloy Nozzle Heaters are commonly supplied in split construction for easier installation and removal. Optional features may include thermocouple holes, integrated thermocouples, moisture-resistant terminal enclosures, stainless steel braided leads, custom watt densities, cooling tubes, and various electrical termination styles. These heaters are available in standard and custom diameters, widths, voltages and wattages to suit OEM and replacement applications.

Industries Using Cast-In Bronze/Brass Alloy Nozzle Heaters

Cast bronze and brass nozzle heaters are widely used throughout many industrial manufacturing sectors including:

Plastics processing industry
Injection molding industry
Blow molding industry
Extrusion equipment manufacturing
Packaging equipment manufacturing
Automotive plastics manufacturing
Medical plastics processing
Aerospace composite processing
Rubber processing industry
Food packaging equipment
Laboratory and research equipment
OEM machinery manufacturing

Applications and Uses

Common applications include:

Injection molding machine nozzles
Sprue bushings
Extrusion dies
Hot runner systems
Melt transfer nozzles
Plastic processing manifolds
Pipe and tubing extrusion equipment
Blow molding machinery
Thermoplastic processing systems
High temperature process heating equipment

These heaters are especially suitable where precise temperature control, high thermal mass and uniform heat distribution are critical to process quality and production consistency.

Advantages of Cast-In Bronze/Brass Alloy Nozzle Heaters

Excellent thermal conductivity and heat transfer
Uniform temperature distribution
Long service life
Rugged mechanical construction
Better durability than mica insulated heaters
Reduced hot spots
High watt density capability
Improved process temperature stability
Resistant to vibration and mechanical abuse
Suitable for demanding industrial environments
Excellent for continuous duty operation
Custom engineered designs available

Limitations and Considerations

While cast bronze/brass alloy nozzle heaters offer many advantages, some considerations include:

Higher initial cost than mica nozzle heaters
Greater weight due to solid cast construction
Longer manufacturing lead times for custom designs
Less flexibility for field modifications
Slower heat-up time in some applications due to higher thermal mass
Proper fit and machining tolerances are important for optimal performance

Selecting the correct heater design, watt density, alloy material and temperature control system is important for achieving maximum heater life, process efficiency and reliable operation.
