Bolt Cartridge Heaters, Bolt Heaters

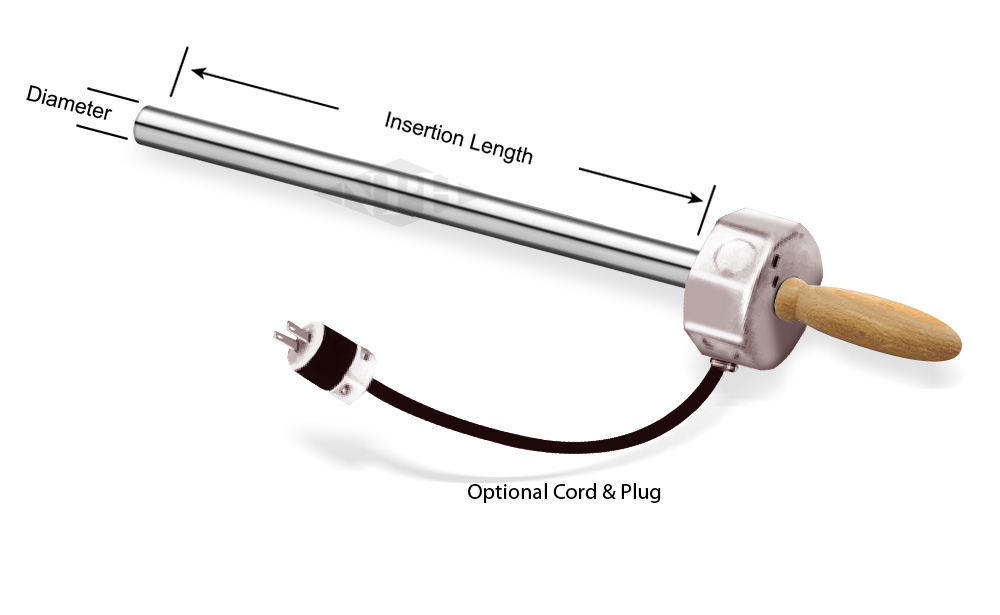

Bolt heaters are used to tighten large bolts that secure heavy machinery and equipment. The shaft of the heater is inserted into the hollow bolt and energized to expand it, which allows further tightening of the nut. Manufactured with a high watt density, they heat up in just a few minutes, resulting in cost savings on reduced man hours removing nuts from bolts and studs. Large bolts can be heated to full expansion in just a few minutes. This heater design is manufactured with specific diameter sheaths to fit industry standard hollow bolts. High watt densities with special heated lengths distribute heat evenly to surrounding bolt.


Features:

  •     Part temperatures to 1400F (760C) on Incoloy sheath
  •     Part temperatures to 1000F
  •     (540C) on optional stainless steel sheath
  •     Nickel-chromium resistance wire, precisely wound and centered in the unit, assures even, efficient distribution of heat to the sheath
  •     Conductor pins metallurgically bonded to the resistance wire ensure trouble-free electrical continuity
  •     Magnesium oxide insulation of specific grain and purity, swaged to the proper density, results in high dielectric strength and contributes to faster heat-up
  •     Incoloy sheath resists oxidation and corrosion from many chemicals, heat and atmospheres
  •     Minimal spacing between the element wire and sheath results in lower internal temperature, giving you the ability to design with fewer or smaller heaters that operate at higher watt densities

Specifications:

The hole diameter should be as close to heater diameter as possible, but within approximately 1/16" (.062) clearance for insertion applications. Close tolerance permits maximum heat transfer and prolonged heater life.

Additional Options:

Typical sizes for electric bolt heaters include: .250", .375", .438", .500", .550", .688", .781", .813", .938", 1", and 1.250". If you do not see the size you need here, contact us and we will make it for you.

Applications:

  • Power Plants
  • Ship Yards
  • Press and Die Manufactures
  • Constructions Contractor
  • Boiler Manufactures

Bolt Cartridge Heaters Selection Guide

The key questions which need to be answered before selecting a cartridge heater for your application are:
  • How much wattage is required?
  • What voltage will be used?
  • What is the heated length? What is the overall length?
  • How long are the heater leads or what is the lead length required?
  • What is the dimentions of the cartridge heater?
  • What is the ambient temperature the cartridge heater will see?
  • What is the maximum temperature required from the heater?
  • How quickly do you want to reach your operating temperature or set point in hour/minutes?
  • What is the type and weight (in lbs.) of the material you want to heat?
  • Special Modifications



How To Order Cartridge Heaters

Quotation Request Form

Select Type of Cartridge Heater
Select Cartridge Heaters Configuration Model Below:
(click on cartridge heaters images below to enlarge)

Confiuration 1

Configuration 1

Confiuration 2

Configuration 2

Confiuration 3

Configuration 3

Confiuration 4

Configuration 4

Confiuration 5

Configuration 5

Confiuration 6

Configuration 6

Confiuration 7

Configuration 7

Confiuration 8

Configuration 8

Confiuration 9

Configuration 9

Confiuration 10

Configuration 10

Confiuration 11

Configuration 11

Confiuration 12

Configuration 12

Confiuration 13

Configuration 13

Confiuration 14

Configuration 14

Confiuration 15

Configuration 15

Confiuration 16

Configuration 16

Confiuration 17

Configuration 17

Confiuration 18

Configuration 18

Confiuration 19

Configuration 19

Confiuration 20

Configuration 20

Confiuration 21

Configuration 21

Confiuration 22

Configuration 22

Confiuration 23

Configuration 23

Confiuration 24

Configuration 24

Confiuration 25

Configuration 25

Confiuration 26

Configuration 26

Confiuration 27

Configuration 27



Outside Diameter
Inserted Length
Overall Length
Watts
Volts
Lead Length
Lead Exit straight 90 copper elbow
Cartridge Heater Lead Options
Cartridge Heaters Lead Protection Options
Lead Connection Construction swaged in leads crimped on leads
Cartridge Heaters Potting Options
Special Features & Construction
Lead Termination Style
Ground Wire Yes no
Thermocouple None J K T
Thermocouple Junction Grounded Ungrounded
Thermocouple Location Disc End Center Offset
Heater Watt Density medium watt density high watt density
Lead Protection Options fiberglass-high temp sleeve-1200F s.steel overbraid armor cable gas proof armor cable F/G leads with ceramic beads
Potting Options Ceramic potting -temp rating 1000F/538C Epoxy 600F/315C Teflon plug 450/232C High temp silicone 650F/343C
Number of Pcs. Required
Requested Delivery Date
Any additional Application Comments & Details
First Name Last Name
Company Name Position
Address City/State/Province
Zip/Postal Code Country
Phone Number Fax Number
Toll Free Number Email
Web Site OEM Distributor Process User
Quotation Request Required Delivery Date
have a salesperson contact me
